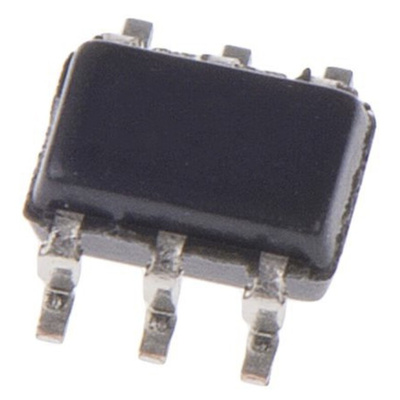

NCS199A2RSQT2G onsemi, Current Sense Amplifier Single Rail to Rail 6-Pin SC-70, Токочувствительный усилитель

The NCS199A2R is a voltage output current shunt monitor (also called current sense amplifier) which can measure voltage across shunts at common-mode voltages from -0.3 to 26V, independent of supply voltage. The low offset of the zero-drift architecture enables current sensing across the shunt with maximum voltage drop as low as 10 mV full-scale. These devices can operate from a single +2.2 V to +26V power supply, drawing a maximum of 80μA of supply current, and are specified over the extended operating temperature range (-40°C to +125°C). Available in the SC70-6 package.

Wide common mode input range -0.3 V to 26 V
Low offset voltage ± 150 μV Max
Low Offset Drift: 0.5 μV/°C
Supply voltage range from 2.2 V to 26 V
High-Side Current Sensing for High Voltage Systems
Low Ohm value Current Sense Resistors
High accuracy over temperature leading to better power efficiency
Wide supply voltage range provides system flexibility
Current Sensing (High-Side/Low-Side)
Applications
Power Monitoring
Power Adapters
Feedback Control Loops
End Products
Fast Chargers - Smartphones
Telecom DC-DC Modules
E-Cigarettes
High End Computing/Servers
Wireless Charging

Datasheet NCS199A2RSQT2G
