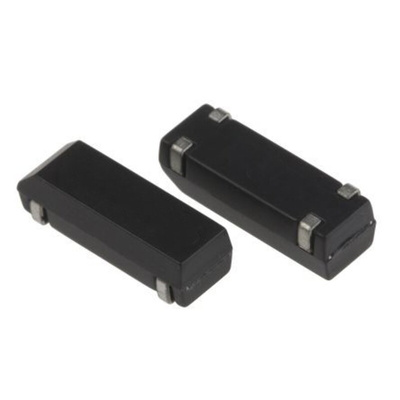

onsemi, MICROFJ-30020-TSV-TR1 Si Photodiode, Surface Mount SMT, Фотодиод

High-density microcells
J-Series sensors feature ON Semiconductor's unique 'fast output' terminal
Temperature stability of 21.5 mV/°C
Exceptional breakdown voltage uniformity of ±250 mV
Available in a reflow solder compatible TSV chip-scale package
Ultra-low dark count rates of 50 kHz/mm2 typical
Optimized for high-performance timing applications, such as ToF-PET
3 mm, 4 mm and 6 mm sensor sizes
Bias voltage of <30 V
Results in a 50% photon detection efficiency (PDE) at 420 nm
Improved signal rise time and the microcell recovery time
Negates the need for active voltage control
Industry-leading uniformity
TSV package results in almost zero deadspace allowing the creation of high fill factor arrays and is ferrous-metal free
Applications
Medical Imaging
Hazard & Threat
3D Ranging & Sensing
Biophotonics & Sciences
High Energy Physics

Datasheet MICROFJ-30020-TSV-TR1
