STR-USBC-4PORT-200W-EVK, onsemi USB AC-DC 4-Port 200W Source FUSB252, FUSB307, NCP1399 Evaluation Board for FUSB252UMX, FUSB307BMPX,

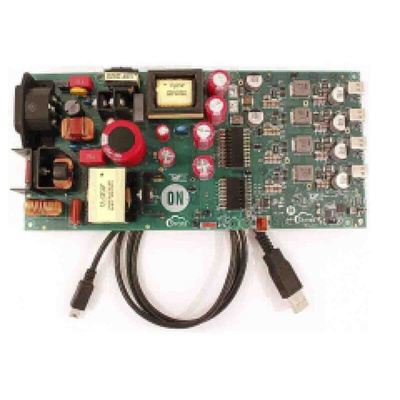

The ON Semiconductor STR-USBC-4PORT-200W-EVK is 4-port, 200W USB-PD source which houses a wide selection of power solutions. This evaluation board is designed to enable development and prototyping of USB-PD (USB Power Delivery) applications. USB-PD is a very advanced and fast charging protocol.
The STR-USBC-4PORT-200W-EVK is designed for wearables, notebook computers, monitors, consumer electronics, point of sale and USB-PD systems.
All ports are 100W capable with a total system power limited to 200W using the ON Semiconductor First Come First Served power management algorithm. A power foldback feature is in place to ensure the device is not damaged if there are high on-board temperatures.

• 4 x USB-C Outputs
• 100W per port design (20V at 5A)
• Delivers 200W across 4 ports
• Power monitoring
• Thermal protection
• Overcurrent protection

What’s on-board?
FUSB252UMX - USB-C Port Protection Switch
FUSB307BMPX - USB-C Port Controller
N34TS04MT3ETG - EEPROM Temperature Sensor
NCD9830DBR2G - 8-bit ADC
NCP1615CDR2G - PFC Controller
NCP705MT33TCG - LDO Regulator
NCP81231MNTXG - USB-PD Controller
NCP81239MNTXG - USB-PD Controller
NCV213RSQT2G - Current Sense Amplifier
NCV214RSQT2G - Current Sense Amplifier
NCV890200PDR2G - Switching Regulator

Versions Available:
(185-9637) - STR-USBC-4PORT-200W-EVK - 4-port
(185-9636) - STR-USBC-2PORT-100W-EVK - 2-port

Strata Developer Studio
This is a development platform from ON Semiconductor that helps you to evaluate and prototype your designs. It is really quick and easy to use. You can design schematics, PCB layouts and test reports.
Strata Developer Studio can be used alongside your STR-USBC-4PORT-200W-EVK board to test power profile configurations, for example optional “assured” port 1 power. You can also trial fault and foldback features and monitor system telemetry while charging different load devices.
