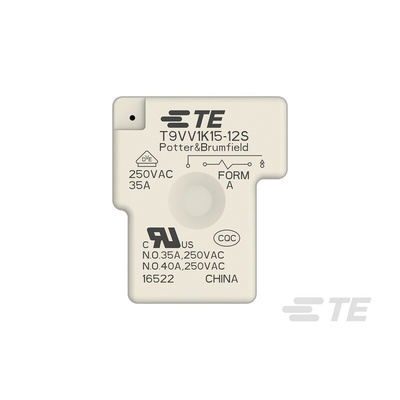

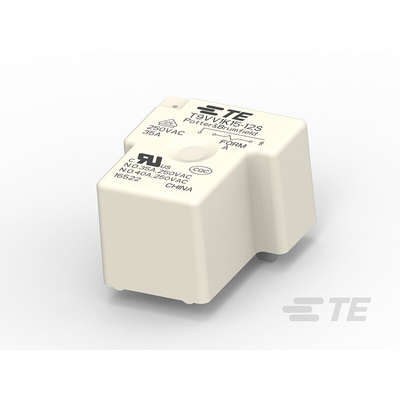

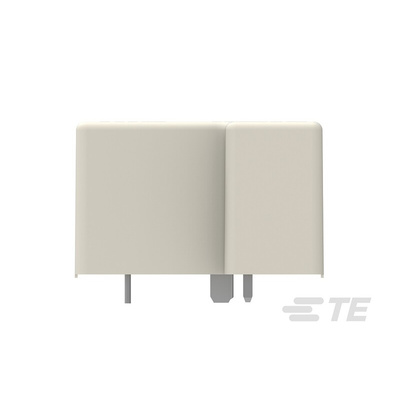

2027395-5, TE Connectivity, 12V dc Coil Non-Latching Relay SPST, 40A Switching Current PCB Mount, Single Pole, Реле

TE Connectivity (TE)’s Potter & Brumfield Power PCB relay T9V series is primarily designed for electrical vehicle charging stations, charging cables and for photovoltaic inverter applications. The extended contact gap (> 1.8 mm) of this relay provides improved isolation and allows usage in higher elevation environments. Other applications include stand by power units, washing machines and dryer disconnections. The T9V series relay allows coil holding voltage reduction down to 4.7 V.

Provide an ideal solution for disconnect switch applications (safety)
Enable high current switching (9 kW single and 27 kW 3 phase solar inverters)
Provide a solution for cadmium-free application requirements
Achieve improved isolation with extended contact gap (1.8 mm)
Allow for coil holding voltage reduction down to 4.7 V
Application
Electrical vehicle loading stations
Electrical vehicle charging cables
Photovoltaic inverter
Stand by power units
Washing machines
Dryers

Datasheet 2027395-5
