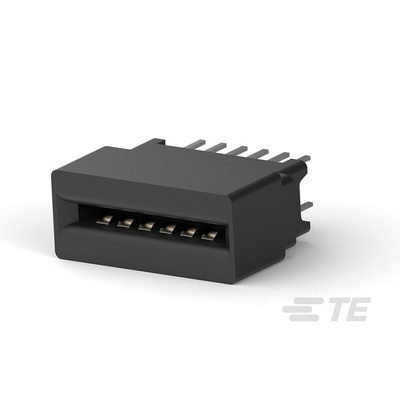

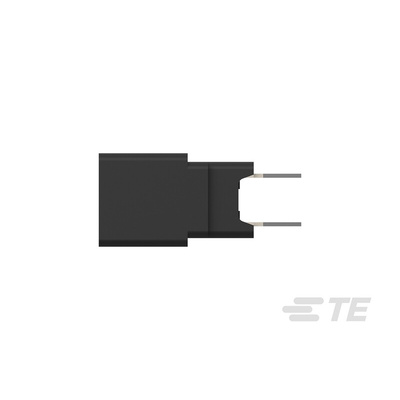

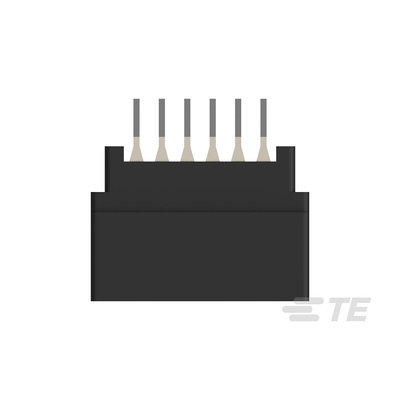

7-5530843-6, TE Connectivity, L Female PCBEdge Connector, Through Hole Mount, 12 Way, 2 Row, 2.54mm Pitch, 3A, Разъем

TE Connectivity 7-5530843-6

Housing Type=Receptacle, Connector System=Board-to-Board, Contact Type=Socket, Connector & Contact Terminates To=Printed Circuit Board, PCB Mount Orientation=Vertical, Number of Positions=12, Number of Power Positions=12, Number of Dual Positions=6, Number of Single Positions=0, Operating Voltage=400 VAC, Operating Voltage=400, Contact Base Material=Phosphor Bronze, Contact Current Rating (Max)=3 A, Contact Mating Area Plating Material=Gold, Contact Mating Area Plating Thickness=.76 μm, Contact Retention=Without, Termination Post & Tail Length=4.75 mm, Termination Method to Printed Circuit Board=Through Hole - Solder, PCB Mount Retention Type=Solder Tail, Connector Mounting Type=Board Mount, Mating Alignment=With, Mating Retention=Without, Mating Alignment Type=Keyed, End Caps=Without, Centerline (Pitch)=2.54 mm, Housing Color=Black, Housing Material=Polyester GF, Card Slot Depth=7.7 mm, Power Contact Centerline=2.54 mm, Height=15.7 mm, Operating Temperature Range=-55 – 85 °C, Circuit Application=Power & Signal, UL Flammability Rating=UL 94V-0, Packaging Method=Tray, Packaging Quantity=24, Position Locations Omitted=None, For Use With=Printed Circuit Board

Datasheet
