EF.7731112291, Parker UCC Easiflow Series Variable Area Flow Meter for Liquid, 4 L/min Min, 50 L/min Max

Parker UCC Flowmeter

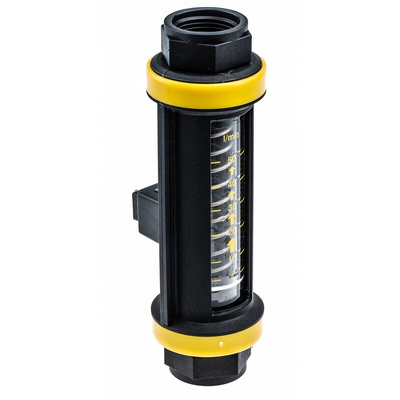

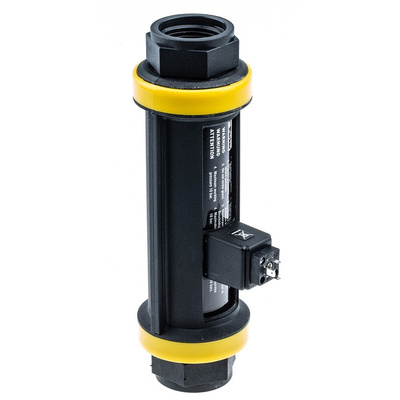

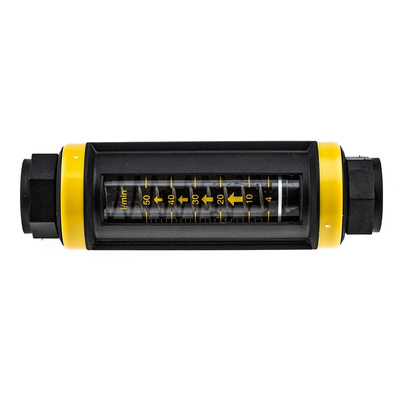

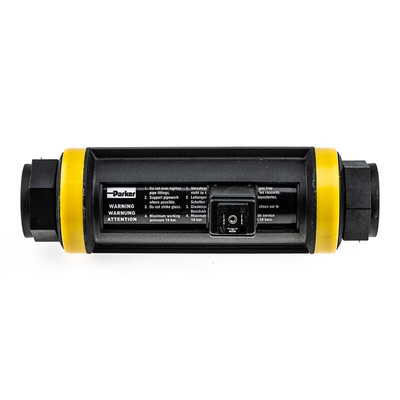

The Parker UCC Easiflow series variable area flowmeter measures a liquid flow rate of 4L/min to 50L/min. This flowmeter enabled with an AC-DC switch. It is suitable for controlling valves or pump motors or for activating alarm signals. This indicator has an operating voltage of 300VAC/DC.
Note:
The switch is non-latching. Once the flow rate has passed the switching level, it will de-activate. If latching is required, a separate circuit containing a latching relay is necessary. All units are supplied with instruction leaflets.
Inclusions:

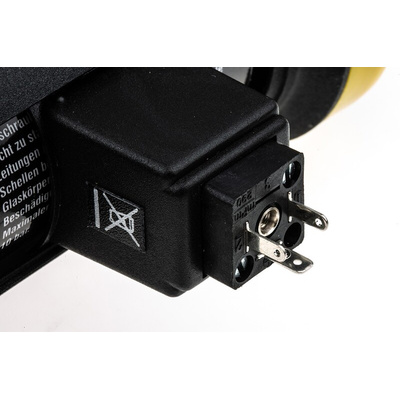

2 x DIN standard sockets complete with plugs.

Features and Benefits

Pipe diameter range is 1in
Connection type is 1 BSP female
Maximum operating pressure is 10bar
Maximum operating temperature is 60°C

Media monitored is liquid
It works in any plane
Pressures up to 10bar
Accuracy ±5% FSD
Repeatability ±1% FSD
Fully adjustable flow rate signalling
Plant and equipment protection

Flowmeters and Monitors Datasheet
