90872-1, TE Connectivity PRO-CRIMPER III Hand Ratcheting Crimp Tool for 093 Commercial Pin & Socket Contacts, Обжимные клещи

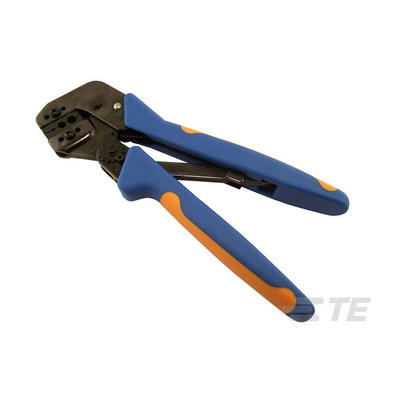

TE Connectivity Commercial Grade Pro-Crimper III Hand Crimping Tool

This hand crimping tool is designed for field installation, repair, maintenance work or prototyping in industrial, commercial or institutional applications. The PRO-CRIMPER III hand tools are ergonomically designed as they have a thin and comfortable handle and are built to the highest standards.

The tool features a tool frame with a stationary jaw and handle, a moving jaw, a moving handle, and an adjustable ratchet that ensures full contact crimping. The tool frame holds a die assembly with two crimping sections. The die assembly features a wire anvil, an insulation anvil, a wire crimper, and an insulation crimper. Attached to the outside of the frame is a locator assembly, which contains a locator, a spring retainer, and a contact support. Die retaining pins and die retaining screws are used to position and secure the dies in the tool frame. A nut is used on the upper die retaining screw to hold the locator assembly in place.

Features and Benefits:

Manufactured with precision stamping – allows close tolerance controls on parts for better performance and repeatability
Enhanced ergonomics – comfortable handle profile for user comfort
Stronger tool frame – long lasting performance
Commercial crimp tooling
Ratchet configuration – operator releasable and adjustable, ensures that a full crimp cycle is achieved
Removable, Interchangeable dies
18-24 AWG
