RS PRO 50m Long Hose Protector, 32 → 40mm Hose Size Compatibility, Протектор

RS PRO Hose Protector

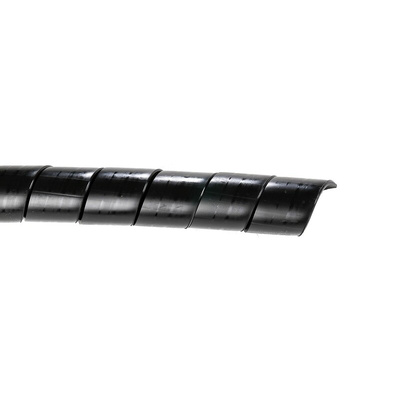

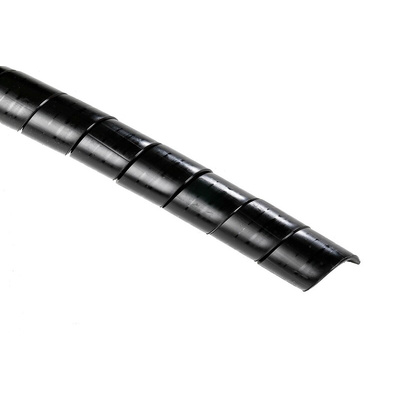

The RS PRO SPH series black hose protector has a length of 50m, a wall thickness of 2.4mm and an outer diameter of 40mm. It offers quick and simple protection to all types of hydraulic and pneumatic hoses. A cost-effective solution to reducing shocks, abrasion and deterioration, helping reduce equipment downtime and maintenance costs. It is easily installed to new or existing hydraulic and pneumatic assemblies without the use of any tools.

Features and Benefits

• Simple to use with one or several hoses
• Smooth rounded edges prevent damage to hose assemblies or equipment during installation and use
• Can withstand a temperature range between between -40°C to 138°C
• Suitable for contact with hydraulic fluids including glycol and phosphate based products
• Maximum compatible hose size of 40mm
• Minimum compatible hose size of 32mm

Applications

• Hydraulic equipment
• Pneumatic equipment
• Paint spraying equipment and accessories
• Chemical or industrial hoses

Certifications

• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007

RS PRO Datasheet
