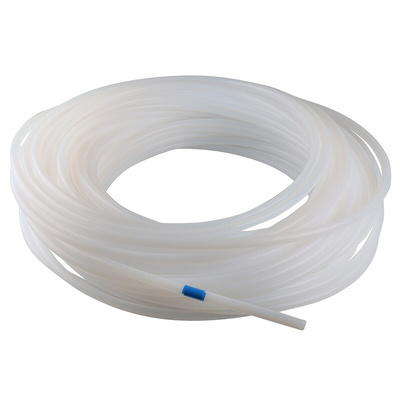

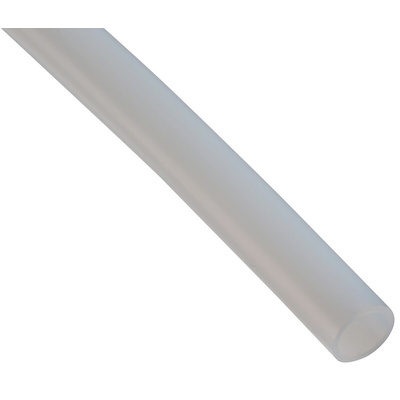

RS PRO Flexible Tube, PTFE, 8mm ID, 10mm OD, Clear, 50m, Трубка

RS PRO PTFE Flexible Tubing, Clear

Introducing RS PRO PTFE (Polytetrafluoroethylene) flexible tubing, a selection of highly durable and versatile PTFE tubing suitable for a wide range of applications. The tubes are manufactured from Polytetrafluoroethylene material offering an excellent range of benefits including a very high resistance to chemicals and corrosion, resistance to varied temperatures and excellent electrical insulation properties as well as remaining flexible. Due to the versatility of the material, PTFE is used in a wide range of industries from aerospace to medical.

Features and benefits

• Excellent resistance to chemicals ensuring protection and corrosion resistance


• Wide operating temperature range -60°C to +250°C


• Superb co-efficiency of friction


• Weatherproof properties


• Electrical insulation properties


• FDA Approved


• Highly durable yet flexible


• Available in various sizes

Application

PTFE tubing, also known as Teflon tubing, is a highly versatile tube made from Polytetrafluoroethylene plastic that is available in various sizes and colours. Due to the wide range of benefits surrounding the material it is used in numerous industries and applications that require a highly durable plastic that can withstand high temperatures, chemicals and offers excellent electrical insulation properties. PTFE tubing is used in areas such as:

• Aerospace


• Medical


• Chemical


• Cookware


• Pneumatic control system


• Fuel and lubrication lines


• Chemical transfer tubing

FAQs

What sizes are available?

• 1860591 - 4mm (Internal Diameter) 6mm (External Diameter) 84 Bar (Minimum Burst Pressure) 50m (Coil Length)


• 1860592 - 6mm (Internal Diameter) 8mm (External Diameter) 56 Bar (Minimum Burst Pressure) 50m (Coil Length)


• 1860593 - 8mm (Internal Diameter) 10mm (External Diameter) 42 Bar (Minimum Burst Pressure) 50m (Coil Length)


• 1860595 - 10mm (Internal Diameter) 12mm (External Diameter) 34 Bar (Minimum Burst Pressure) 50m (Coil Length)

What are the benefits of PTFE?

PTFE is a highly durable plastic that is extruded from chemically inert compound and offers a vast amount of benefits making it suitable for a wide range of applications. One of the key features PTFE offers is that it has a very wide operating temperature range, with a melting point of up to +250ºc. Furthermore, the material also has a very high chemical resistance ensuring that it remains durable and efficient. PTFE also has excellent co-efficiency of friction, meaning that other materials won't stick to it which is essential for medical purposes.
