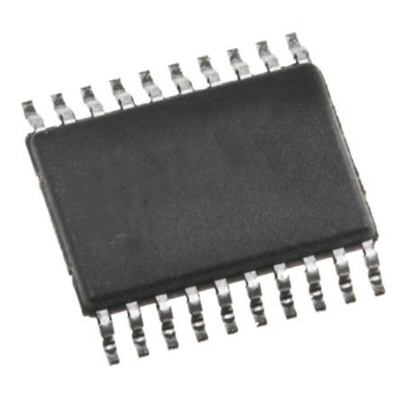

ON Semiconductor NCV7708FDWR2G, DC Motor Motor Driver IC 28-Pin, SOIC, Драйвер двигателя

The NCV7708F is a fully protected Hex−Half Bridge−Driver designed specifically for automotive and industrial motion control applications. The six low and high side drivers are freely configurable and can be controlled separately. This allows for high side, low side, and H−Bridge control. H−Bridge control provides forward, reverse, brake, and high impedance states. The drivers are controlled via a standard SPI interface.

Ultra Low Quiescent Current Sleep Mode
Six Independent High−Side and Six independent Low−Side Drivers
Integrated Freewheeling Protection (LS and HS)
Internal Upper and Lower Clamp Diodes
Configurable as H−Bridge Drivers
RDS(on) = 0.6 Ω (typ)
5 MHz SPI Control
SPI Valid Frame Detection
Compliance with 5 V and 3.3 V Systems
Over- and undervoltage Lockout
Fault Reporting
Current Limit
Overtemperature Protection
Internally Fused Lead in SOIC−28 Packaged for Better Thermal Performance
SSOP-24 NB EPAD
Applications
Automotive
Industrial
DC Motor Management
End Products
HVAC

Datasheet NCV7708FDWR2G
