35BAYCF2IDE, Startech 1 port IDE Internal Card Reader for Compact Flash Type I, Compact Flash Type II Card Types

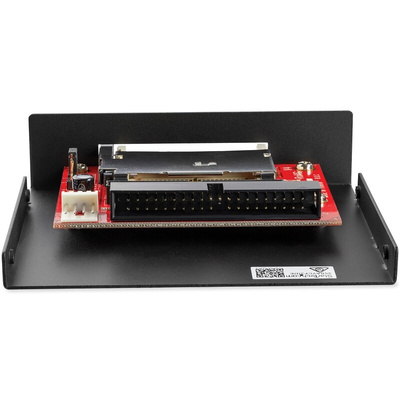

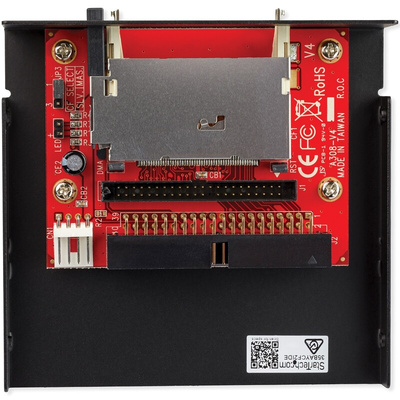

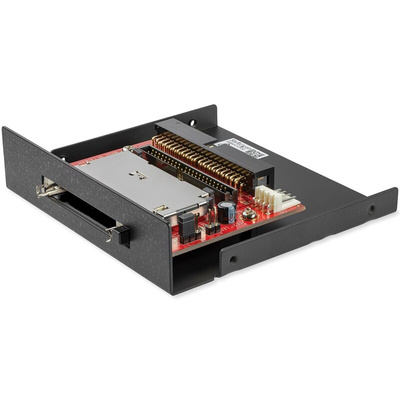

35BAYCF2IDE IDE to CF Adapter

This Compact Flash IDE adapter is a perfect solution for accessing CompactFlash (CF I, CF II) and IBM Micro Drive media, allowing you to access the flash/micro drive media as if it were an IDE hard drive. The CF/IDE adapter can be installed in the computer case through simple mounting in an available 3.5in drive bay, for connection to the computer IDE bus through either a 40 or 44-pin connection. Designed and constructed to provide a reliable media card platform, the CF IDE adapter is backed by StarTech.com's 2-year warranty.

Features & Benefits

• Quick and driver free installation into any IDE 40 pin and 44 pin slot
• Fully compatible with Compact Flash Type I/II and IBM Micro-drive
• Allows Compact flash card to be used as bootable storage
• Easy to use jumpers offer simple master/slave drive setting
• Can be mounted in the front or rear panel of your case, to fit into any 3.5” bay or available expansion slot
• Easily swap cards in and out with built-in push button ejector
• Quick and driver free installation into any IDE 40 pin and 44 pin slot
• Easily swap cards in and out with built-in push button ejector

Applications

• Use your compact flash card as a bootable and removable device
• Excellent for swapping operating systems quickly without having to take your computer apart.
• Connect your compact flash card to a 40 or 44 pin IDE slot

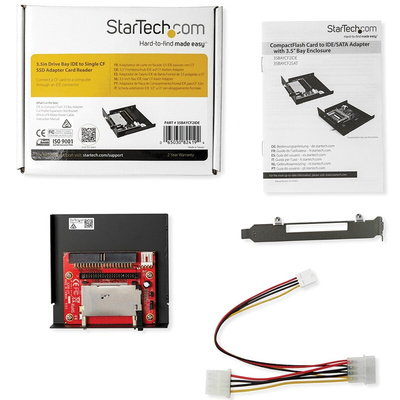

What’s in the package?

• Compact Flash to IDE Adapter
• 3.5” Enclosure
• Full Profile Expansion Slot Bracket
• SP4 to LP4 Molex Power Cable
• Instruction Manual

Datasheet 35BAYCF2IDE
