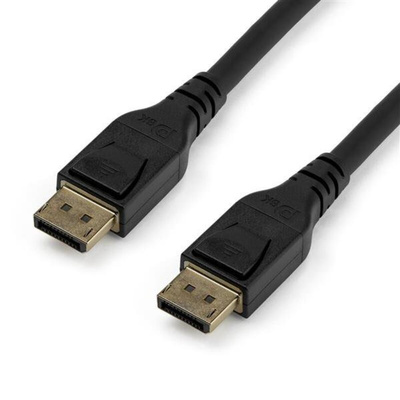

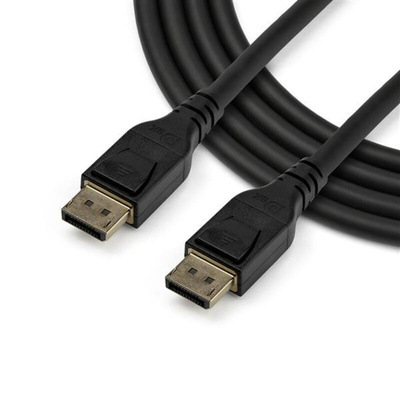

DP14MM5M, StarTech.com Male DisplayPort to Male DisplayPort, PVC Cable, 8K @ 60 Hz, 5m

DP14MM5M DisplayPort 1.4 Cable

This DisplayPort 1.4 cable connects your DisplayPort™ laptop or desktop computer to a “super ultra-high definition” 8K monitor, TV or projector. It supports resolutions up to 8K (7680x4320) @ 60Hz.

The DisplayPort monitor cable provides the essential connection to support the next generation of super ultra-high definition video.

This cable is VESA® to ensure full compliance and efficient operation of the higher link rate of HBR3. It has been tested to meet all DP 1.4 specifications to ensure quality and reliability.

The Superior Performance of DisplayPort 1.4

This 8K DisplayPort cable supports all DP 1.4 features:


High Bit Rate 3 (HBR3) Bandwidths of 32.4 Gbps supporting the latest in industry standards
High Dynamic Range (HDR) for higher contrast ratio and vivid colors
Multi-Stream Transport (MST) for daisy-chaining multiple monitors
Display Stream Compression 1.2 (DSC) for maximum resolution output
Forward Error Correction to manage data transmission errors
High-Bandwidth Digital Content Protection (HDCP 2.2) for a secure connection between source and display
32 Uncompressed Digital Audio Channels

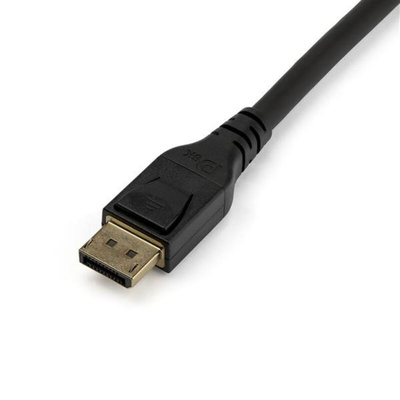

Flexible Cable with Reliable Latched Connectors

The cable has a slim professional grade 34 AWG construction that allows for flexible installation while offering superior reliability for a clean quality installation. Each connector features latches that provide secure connections between your devices.

8K: Enabling Business Continuity

8K has a resolution of 7680 x 4320 and is also known as 4320p and Super Ultra High Definition (SUHD). It is seen in digital signage and other commercial displays that require the highest available resolution. This cable is backward compatible with 4K and 5K displays making it the perfect peripheral to start futureproofing your cabling infrastructure.

Comprehensive Product Testing & Expert Technical Support 

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have a broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales. 

DP14MM5M is backed by a StarTech.com lifetime warranty.

Features & Benefits

• Deliver best in class 8K video content with a VESA® certified DisplayPort 1.4 cable
• Experience superior DisplayPort video with resolutions of up to 7690 x 4320 at 60Hz with 4:4:4 chroma subsampling
• Enjoy higher contrast ratios and vivid colors with High Dynamic Range (HDR) support
• High quality 34 AWG construction offers a small outer diameter of 4.5mm for discreet installations
• Lifetime warranty and guaranteed reliability

Applications

• Delivering visually enriched presentations
• Displaying crisp digital signage walls
• Creating eye-catching visuals for photography, videography, cinematography
• Producing lifelike gaming

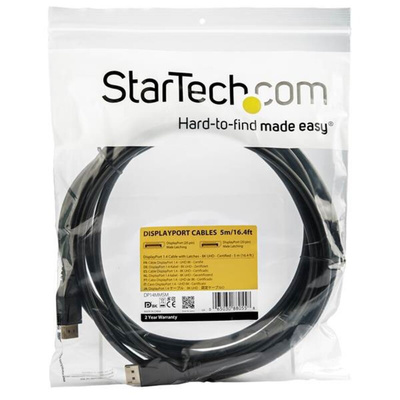

What’s in the package?

• DisplayPort Cable

FAQs

How is DisplayPort different from HDMI?
DisplayPort offers the support of higher performance requirements than HDMI, which is based on updated signal and protocol technology used in today's computers. This enables an increase in performance and integration.
DisplayPort cables are more suited to connecting multiple screens, with a single port able to drive up to four monitors. Therefore, for applications such as video walls, a DisplayPort interface is preferable.
Though in most cases the quality difference between HDMI and DisplayPort are negligible, DisplayPort cables are typically able to maintain lower resolution loss over longer cables lengths than HDMI cables.

Does DisplayPort support Audio?
Yes, DisplayPort supports multi-channel audio requirements.

What is a Mini DisplayPort?
Mini DisplayPorts are a miniaturized version of the DisplayPort designed to be used with smaller devices such as smartphones. They are found in certain laptops, and can be easily adapted to work with standard size DisplayPorts.

Datasheet DP14MM5M
