50FIBLCLC3, StarTech.com Startech LC to LC Duplex Multi Mode OM2 Fibre Optic Cable, 50/125μm, Orange, 3m, Кабель

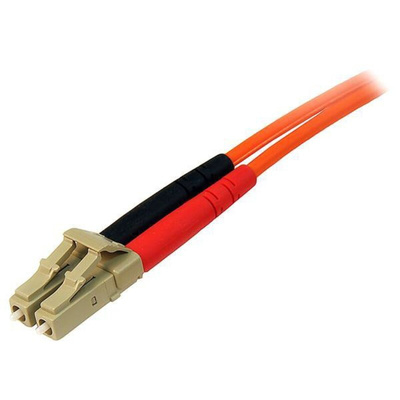

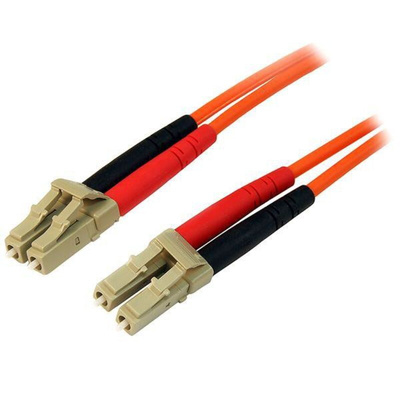

50FIBLCLC3 Fibre Cable

The 50FIBLCLC3 3m LSZH LC to LC Fibre Cable features 50/125 micron fibre for high-speed, high bandwidth data transmissions over Gigabit Ethernet and Fibre Channel networks, with support for duplex multimode applications.

This LC-LC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire. Making it ideal for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.

Each Duplex 50/125 (OM2) Multimode Fibre Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability and is backed by our lifetime warranty.

Features & Benefits

• Immune to electrical interference
• OM2 (50/125) 500MHz multimode fibre
• LSZH (Low-Smoke, Zero-Halogen) cable jacket
• Attenuation loss meets or exceeds industry standards
• LSZH-rated cable, suitable for installations under restrictive building codes
• High-speed, high bandwidth transmissions over Gigabit Ethernet/fibre channel networks
• Resistant to pulls, strains, and impacts during your cable installations and maintenance

Applications

• Ideal solution for data applications requiring high speed data transmission
• Broadband systems
• Telecommunication / Data communication
• Used by long distance networks with mission critical data

What’s in the package?

• 3m Multimode 50/125 Duplex Fibre Patch Cable LC – LC

FAQ

What is the difference between UPC and APC connectors, and what do StarTech.com cables use?

UPC and APC are fibre cable connector types. UPC (Ultra Physical Contact) connectors have a fibre connector end face that has been polished to be dome-shaped. This results in light that can be reflected straight back to the source. APC (Angled Physical Contact) connectors have a fibre connector end face that has been polished at an eight degree angle. This results in a reduced amount of light that is reflected between the two connected fibres. StarTech.com fibre cables use UPC connectors.

Datasheet 50FIBLCLC3
