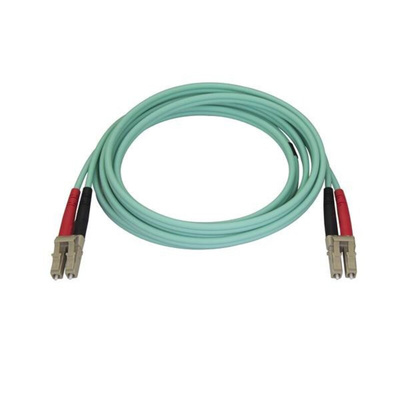

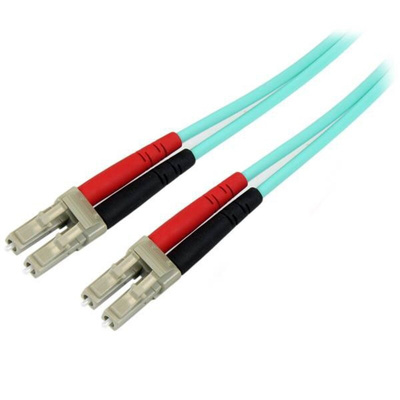

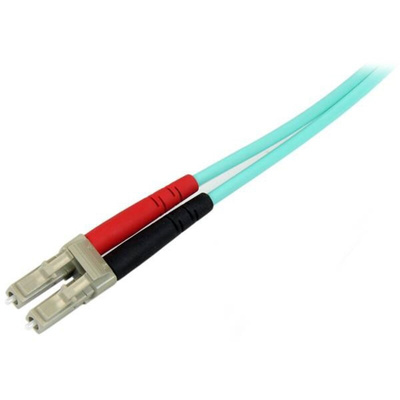

450FBLCLC2, StarTech.com Startech LC to LC Duplex Multi Mode OM4 Fibre Optic Cable, 50/125μm, Aqua, 2m, Кабель

450FBLCLC2 Fibre Cable

This fibre optic cable lets you connect 40GBase-SR4, 100GBase-SR10, SFP+ and QSFP+ transceivers in 40 and 100 Gigabit networks. The OM4 cable supports Vertical Cavity Surface Emitting Laser (VCSEL) and LED light sources and is backward compatible with your existing 50/125 equipment.

This Aqua OM4 duplex multimode fiber cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire. It's ideal for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.

Each OM4 fibre cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.

The 450FBLCLC2 from StarTech.com is backed by a lifetime warranty.

Features & Benefits

• OM4 (50/125) 3500MHz multimode fibre
• Backward compatible with your existing 50/125 equipment
• Laser-optimized multimode fiber (LOMMF)
• Compatible with 850nm VCSEL source
• Attenuation loss meets or exceeds industry standards

Applications

• Use in 40/100 Gigabit Ethernet and Fiber Channel applications
• Supports VCSEL laser and LED light sources

What’s in the package?

• LC fibre-optic cable

FAQ

What is the difference between UPC and APC connectors, and what do StarTech.com cables use?

UPC and APC are fibre cable connector types. UPC (Ultra Physical Contact) connectors have a fiber connector end face that has been polished to be dome-shaped. This results in light that can be reflected straight back to the source. APC (Angled Physical Contact) connectors have a fiber connector end face that has been polished at an eight degree angle. This results in a reduced amount of light that is reflected between the two connected fibers. StarTech.com fiber cables use UPC connectors.

Datasheet 450FBLCLC2
