ARMPIVOTHDB, StarTech.com Desk Mounting Monitor Arm for 1 x Screen, 34in Screen Size

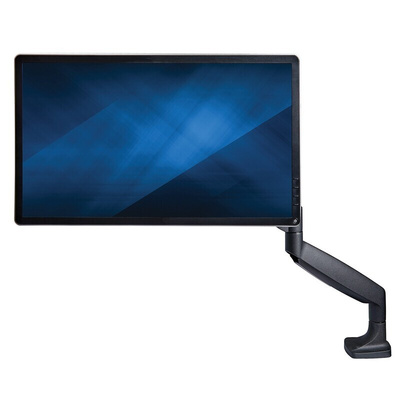

ARMPIVOTHDB Desk Mount Monitor Arm

Free up space while creating an ergonomic work environment. This desk-mount monitor arm makes it easy to securely mount your display above your desk or table and adjust the height with one touch. You can mount a display ranging in size from 13” to 32” (330 mm to 813 mm), and the monitor arm features an attractive black finish that complements your workspace.

Mount Your Monitor to Save Space

This heavy-duty monitor arm saves space on your work surface by elevating your monitor above your desk or table.

One-Touch Height Adjustment

The monitor-mount arm features a gas-spring cylinder that makes it easy to raise or lower your display, with up to 13.1" (335 mm) of height adjustment. Adjust the tension according to the weight of your monitor, to re-position the monitor height effortlessly.

Adjust Your Monitor for Ideal Viewing

The full-motion articulating monitor arm extends up to 23.8” (605 mm) so it’s easy to find the right viewing angle. Swivel your monitor 180 degrees to share your display, while collaborating with others. Tilt your screen 90 degrees for comfortable viewing or rotate it 180 degrees for landscape or portrait viewing.

Easy Installation

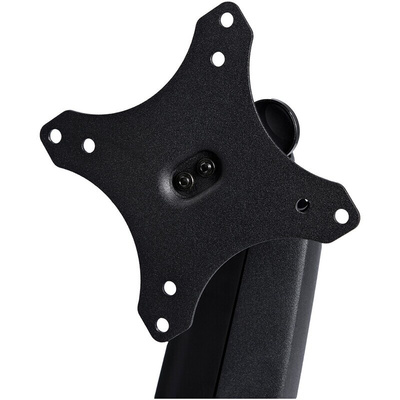

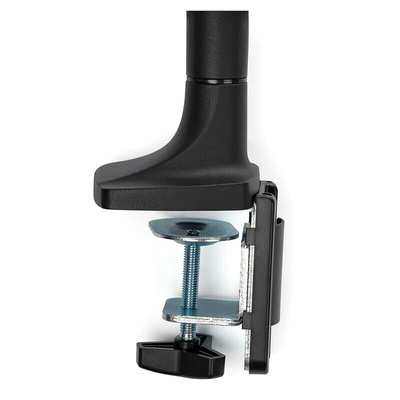

The VESA monitor mount is easy to install (desk C-clamp or grommet mount) and offers built-in cable management. The detachable VESA panel makes it simple to attach or remove your monitor.

ARMPIVOTHDB is backed by a StarTech.com 5-year warranty and free lifetime technical support.   

Features & Benefits

• Single-monitor arm saves space by letting you mount a monitor up to 32” (813 mm) weighing up to 19.8 lb. (9 kg)
• Durable, heavy-duty aluminum construction with attractive black finish
• Easy one-touch height adjustment (up to 13.1” /335 mm) with gas spring arm
• Hassle-free installation with detachable VESA panel and integrated cable management
• Articulating arm rotates and swivels 180°, and provides +90° / -90° tilt

Applications

• Use in workstations with multiple users
• Add comfort to office environments or your home office
• Rotate your display from landscape to portrait position for web design or coding

What’s in the package?

• Spring Arm
• VESA Monitor Mount
• Grommet Base Plate
• Grommet Plate
• L Bracket
• Desk Clamp
• Hex Key Holder
• Clamp Screws
• Grommet Knob
• Rubber Pads
• 4 mm Hex Key
• 5 mm Hex Key
• 6 mm Hex Key
• M4x12 mm Thumbscrews
• M5x12 mm Screws
• Washers
• Spacers
• Grommet Screw
• Instruction Manual

FAQs

How easy is it to install the desk mount monitor arm?
The desk mount monitor arm is provided with all the necessary mounting materials. All StarTech wall mounts come with installations manuals and offers step-by-step guidance for safe mounting.

Where can I find my VESA configuration size?
It is advised that you look in your product manual to find the correct VESA size. If you do not have this available you can measure the distance between the four holes in the back of your TV or Monitor. Measure the horizontal and vertical distances from the holes.

Mounting Options

Desk & Grommet Clamp

Height Adjustment

Yes

Datasheet ARMPIVOTHDB

ARMPIVSTND Mount Guide
