ARMSTSCP1, StarTech.com Desk Mounting Monitor Arm for 1 x Screen, 24in Screen Size

ARMSTSCP1 sit Stand Monitor Arm

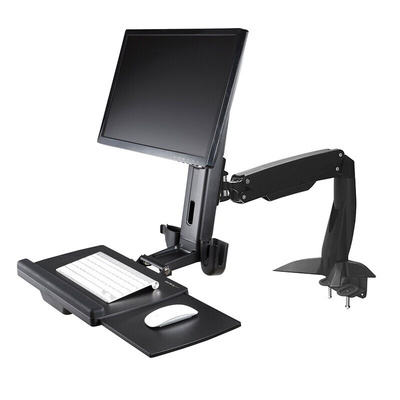

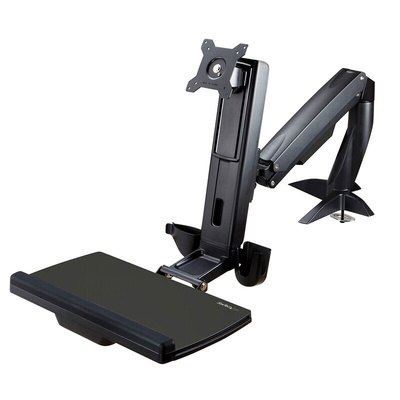

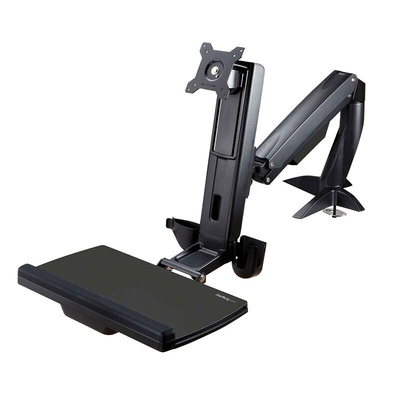

This sit-stand monitor arm transforms your desk or tabletop into an ergonomic workstation. The monitor arm features a keyboard tray and easy height adjustment that lets you alternate between sitting and standing, without interrupting your workflow. Move your workstation up or down, left or right, to meet your needs.

Adjust the height with one smooth motion

Adjust your position, with one smooth motion. Simply lift the work surface up to 17.7” (450 mm), to elevate both your monitor and keyboard. You can adjust the tension to your own preference. The monitor mount has a separate height adjustment of up to 4.9" (124 mm) along the column.

Optimum adjustability

This sit-stand monitor arm supports one monitor up to 24”. The swing arm swivels from -90° to 90° and tilts from -30° to 65° for ideal viewing. The VESA mount also rotates up to 360° for portrait or landscape orientation.

Ample working space

The monitor arm features a large keyboard tray (17.68 x 8.15”/ 449 x 207 mm) with ample working space. A slide-out tray (8.5 x 8.4" / 217 x 213 mm) holds your mouse, on the left or right.

To make the most of your workspace, you can tuck the monitor arm away when it’s not in use, to free up space. The keyboard tray also folds up to 90°.

Flexible installation

The compact sit-stand monitor arm features a grommet assembly and desk-clamp option, to fit easily into your workspace, including space-limited corners.

The ARMSTSCP1 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Features & Benefits

• Turn your desk into an ergonomic workstation with this sit-stand monitor arm, for one monitor up to 24"
• The work surface has a height adjustment of up to 17.7” (450 mm)
• Monitor mount has a separate height adjustment of up to 4.9" (124 mm) along the column
• Adjust your monitor for ideal viewing, with -90° to 90° swivel and -5° to 35° tilt
• Viewing distance: 16.1" (408.7 mm)
• Rotates 360° for landscape or portrait viewing
• Built-in cable-management keeps your workstation well organized
• The arm tucks away and the keyboard tray folds up to 90°, saving space when not in use
• Clamp and grommet base options for flexible installation options, including space-limited areas such as desk corners or rear sides
• 100x100 mm, 75x75 mm VESA mount compatible
• TAA compliant

Applications

• Create a sit-stand workstation in healthcare environments, cubicles, or offices with limited space
• Provides a cost-effective solution, with clamp or grommet mounting options for existing desks
• Works well with space-limited corner desks

What’s in the package?

• monitor arm
• column
• keyboard tray
• keyboard tray cap
• base
• VESA monitor mount
• plastic washer
• metal washer
• M8x20 mm screw
• M6x25 mm screws
• M6x12 mm screws
• M6x10 mm screws
• M6x8 mm screw
• M4x10 mm screws
• base screws
• 2.5 mm hex key
• 5 mm hex key
• 6 mm hex key
• adhesive strip
• socket driver
• base pad
• base plate
• M8x65 mm screw
• grommet plate
• clamp screws
• clamp L bracket
• clamp screw assembly
• instruction manual

FAQs

How easy is it to install the sit-stand monitor arm?
The sit-stand monitor arm is provided with all the necessary mounting materials. All StarTech mounts come with installations manuals and offers step-by-step guidance for safe mounting.

Does the sit-stand monitor arm tilt or swivel?
Yes, this sit-stand monitor arm will tilt Monitors -30° to 65° degrees and swivel -90° to 90° degrees to reduce glare and for perfect viewing.

Where can I find my VESA configuration size?
It is advised that you look in your product manual to find the correct VESA size. If you do not have this available, you can measure the distance between the four holes in the back of your TV or Monitor. Measure the horizontal and vertical distances from the holes.

Mounting Options

Desk & Grommet Clamp

Height Adjustment

Yes

Datasheet ARMSTSCP1
