SDI2HD, Startech 2 port SDI to HDMI, SDI Adapter 230m - 1920 x 1080

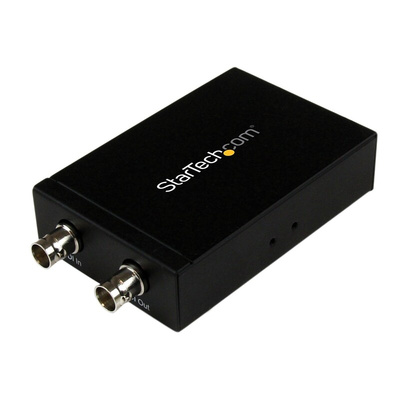

SDI2HD SDI to HDMI Converter

The SDI2HD 3G SDI to HDMI converter enables you to turn a 3G SDI video signal into an HDMI video output. The adapter features a built-in 3G SDI daisy chain port, giving you the ability to further extend the SDI source to up to 755ft (230m) over standard coaxial cable, for large scale HD-SDI video broadcasting distribution.

To ensure you maintain perfect high-definition video quality the SDI-HDMI converter features supports resolutions up to 1080p, allowing you to convert SDI to HDMI without sacrificing video quality.

The SDI2HD is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Features & Benefits

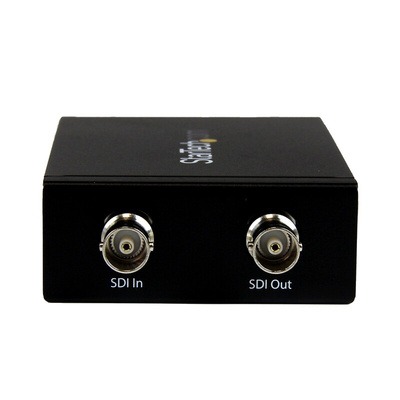

• Built-in 3G SDI daisy chain port
• Receives 3G SDI signals from up to 755ft (230m)
• Supports video resolutions up to 1920x1200 / 1080p
• Plug and play SDI to HDMI conversion
• Supports AES &
EBU Audio Decoding
• Pre-installed Mounting brackets
• Increase scalability, with built-in 3G SDI daisy chain port
• Maintain High-definition video quality while converting from 3G SDI to HDMI, with support for resolutions up to 1080p
• Hassle-free installation, with pre-installed mounting brackets and no software or drivers required

Applications

• Convert a 3G SDI video run to HDMI from up to 755ft (300m) away
• Connect your HDMI display to a 3G SDI video run
• Output to an HDMI Display and continue your 3G SDI run up to an additional 755ft (300m) using the daisy chain port

What’s in the package?

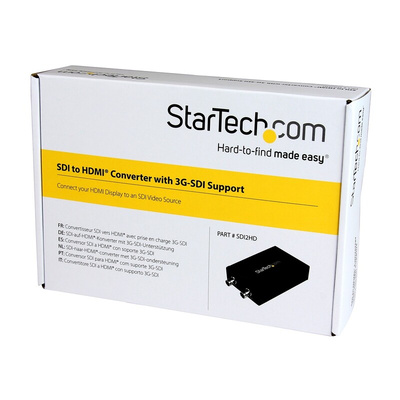

• SDI to HDMI Adapter
• Mounting bracket assembly (attached)
• Universal Power Adapter (NA/UK/EU/)
• Instruction manual

FAQs

Is the installation easy?
Yes, for hassle-free installation, the SDI to HDMI converter offers a plug-and-play solution that includes pre-installed mounting brackets and requires no software or driver installation.

Datasheet SDI2HD
