ST121HDBTDK, StarTech.com HDMI over HDBaseT Extender 70m, 4096 x 2160 Maximum Resolution

ST121HDBTDK 4K HDMI Extender

This 4K HDMI extender uses HDBaseT to transmit your HDMI A/V signal to a remote location up to 70 m (230 ft.) away.

Easy and Discreet Installation

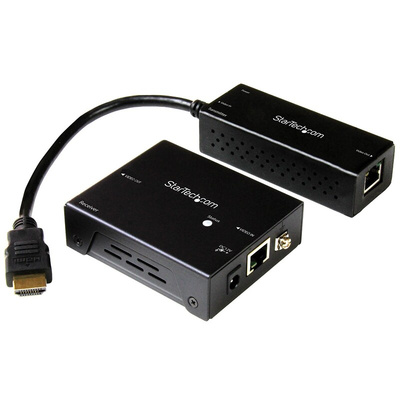

The transmitter in this HDMI HDBaseT extender kit features a small footprint and built-in HDMI cable that connects directly to your source for reduced clutter. It’s powered from a USB port on your source device, which makes it easier to install in areas where power outlets may be limited. Mounting hardware is included for the receiver for a discreet, professional installation.

Get 4K Video at 130 ft. (40 m)

This HDMI over CAT6 extender maintains your UHD 4K picture quality, even at 130 feet away from your video source. Because the extender is backward compatible with 1080p and lower resolutions at 230 feet away, you can comfortably use this extender to make any video source look great. The extender also supports 7.1 audio to ensure all audio channels are captured.

Seamless Integration with Your Existing Infrastructure

The kit extends HDMI over a single cable, unlike some HDMI extenders that require two cables, reducing potential failure points and lowering your cabling costs. Ideal for digital signage, the HDMI over CAT6 extender uses standard CAT5e, CAT6 or CAT7 cables to extend HDMI video over the Ethernet infrastructure that's already in your building.

The ST121HDBTDK is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Features & Benefits

• Simple and versatile installation with a compact, USB-powered transmitter that features a built-in HDMI cable
• Astonishing picture quality with support for UHD resolutions up to 4K
• Easy integration with existing CAT5/CAT6/CAT7 infrastructure
• Mounting hardware included
• 7.1 audio support

Applications

• Transmit an HDBaseT signal to a boardroom or classroom projector
• Distribute digital signage in large buildings like shopping centers, stadiums, schools, and hospitals
• Power your transmitter using the USB port on your video source

What’s in the package?

• HDBaseT transmitter
• HDBaseT receiver
• USB power cable (transmitter) (1310 mm)
• universal power adapter (receiver) (NA, EU, UK, ANZ)
• mounting kit (receiver)
• screw kit for mounting
• footpad set (receiver)
• quick start guide

FAQ

I need to convert a video signal and extend it. Which order should I do this in?

If you need to use a video extender with a video adapter or converter, you should position the adapter or converter as close to the video source as possible. For example, if you need to take a VGA signal from a computer and send it 200 feet to an HDMI® projector, you should convert the signal from VGA to HDMI and use an HDMI extender.

Datasheet ST121HDBTDK
