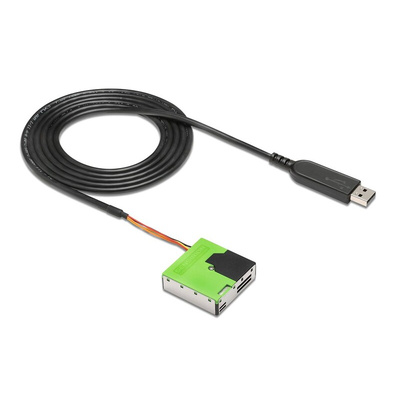

SEK-SPS30, Sensirion SPS30 Sensor & USB adapter cable Particulate Matter Sensor Evaluation Kit for SPS30

The Sensirion SEK-SPS30 sensor evaluation kit includes the SPS30 particulate sensor with 1 x UART to USB adapter cable (2m length). Connection is easy, just connect the USB to your device as well as the SPS30 sensor then you can view in real-time the exact measurement on the screen. The particulate matter sensor is an optical PM sensor that takes measurements based on the laser scattering principle, making use of Sensirion’s innovative contamination resistance technology. This technology, together with high-quality and long-lasting components, enables precise measurements from its first operation and throughout its life expectancy.

Applications for the Sensirion SPS30 sensor include HVAC equipment, air conditioners, smart home and IoT devices. In addition to this air purifiers, demand-controlled ventilation systems as well as air quality and environmental monitors.

The Sensirion SPS30 particulate matter sensor is also available as a single article see RS 1862540 or it can be purchased as a tray of 56 units see RS 1862298

The Sensirion PM Sensor Features:
Mass concentration range 0 to 1,000 μg/m3: accuracy ±10%
Supply voltage 4.5 V to 5.5 Vdc
SPS30 offers two interfaces: I2C, UART
Compact package: Dimensions 41 x 41 x 12 mm
Lower limit of detection 0.3μm
Advanced particle size binning
Fully calibrated digital output
REACH and RoHS compliant

Datasheet
