RS PRO AC Analogue Panel Voltmeter

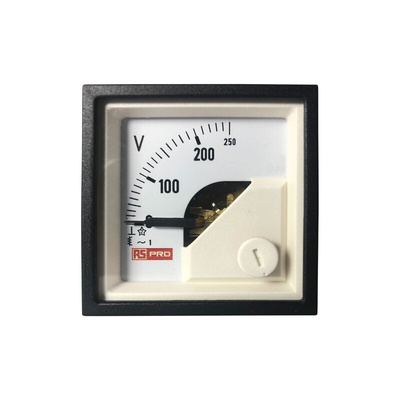

The RS PRO 45mm x 45mm cut-out AC analogue panel voltmeter has a measurement range of 0V to 250V ac input. The DIN style panel meter comprises a moving iron movement. It indicates true RMS value and is substantially independent of system waveform. The scales are calibrated down to 10%. The meter is housed in a moulded polycarbonate case and suitable for measurement of voltages in the frequency range of 15Hz to 100Hz.

Features and Benefits

• Operating temperature ranges between -10°C and 65°C
• Accuracy: 1%
• Pointer: Knife-edge type
• Pointer deflection: 0° to 90°
• AC Voltmeter nominal range: 6V to 1000V
• Shock resistance: 15g for pulse duration of 11 milliseconds
• Moulded square case suitable for mounting control/switchgear panels in machinery consoles
• Overload: 1.2 times nominal voltage (continuous)
• Relative humidity: Less than 75% annual average (noncondensing)

Certifications

• UL 94 V-0 approved
• 2014/30/EC (EMC directive)
• 2014/35/EC (low voltage directive)
• CE certified
• IP52 rated
• EN 61010
• VDE 0100-410: 2018-10 approved
• IEC 529
• IEC 61010
• ISO 20653: 2006-08
