RS PRO Analogue Panel Ammeter 15 (Input)A DC, 57mm x 44mm, ±1.5 % Moving Coil, Амперметр

RS PRO DC Analogue Panel Ammeter

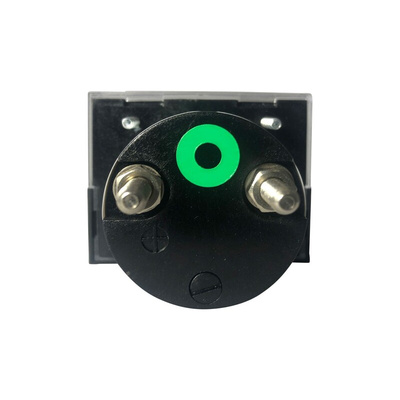

The RS PRO 1.5in 57mm x 44mm cut-out DC analogue panel ammeter has a measurement range of 0A to 15A input. The meter consists of a centre cored, self-shielding moving coil movement using pivots, hairsprings, and sprung jewels. The meter is enclosed in a polycarbonate cover. This innovative design features a detachable lower fascia plate that allows good flexibility.

Features and Benefits

• Operating temperature ranges between 0°C and 60°C
• Accuracy: 1.5%
• Pointer: Knife-edge type
• Relative humidity: 25% to 80%
• Rear zero adjuster
• High torque pivot and jewel movement

Applications

• Marine
• Switchgear
• Distribution systems
• Control panels
• Embedded generation, energy management, building management
• Utility power monitoring
• Motor monitoring

Certifications

• UL 94 V-0 approved
• 2014/30/EC (EMC directive)
• 2014/35/EC (low voltage directive)
• CE certified
• IP42 rated
• EN 61010-1
• VDE 0110-1: 2008-01 approved
• IEC 529
• IEC 1010
• ISO 20653: 2006-08
