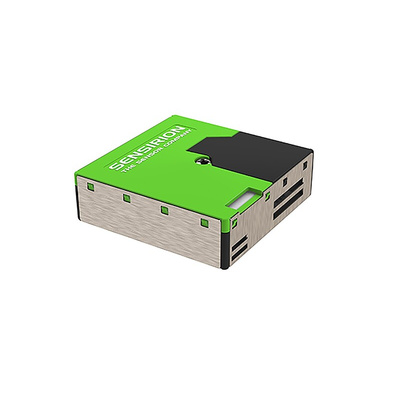

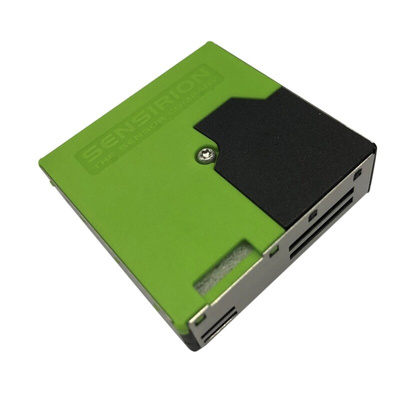

Sensirion SPS30, Air Quality Sensor for Air Quality Monitors

Sensirion SPS30 particulate matter PM2.5 sensor for HVAC and air quality applications has a laser scattering principle, giving you an advanced particle size binning. Providing you with precise measurements for different types of particles. The Sensirion PM sensor also offers a good life expectancy due to the innovative contamination resistance technology. The particulate matter sensor is compact making it easy to integrate, besides this it is fast and easy to use.

The applications for Sensirion’s SPS30 sensor include HVAC equipment, air conditioners, smart home and IoT devices. In addition to this air purifiers, demand-controlled ventilation systems as well as air quality and environmental monitors.

The Evaluation kit is also available to buy see RS 186-2299 SEK-SPS30 which includes the SPS30 Particulate matter sensor with 1 x UART to USB adapter cable (2 m length). You can just connect the evaluation kit by connecting the USB to your device and connecting the sensor then you can see in real-time the exact measurement on the screen.

Mass concentration range 0 to 1,000 μg/m3: accuracy ±10%
Supply voltage 4.5 V to 5.5 Vdc
SPS30 offers two interfaces: I2C, UART
Dimensions 41 x 41 x 12 mm
Lower limit of detection 0.3μm
REACH and RoHS compliant

SPS30 Datasheet
