CDP2MDP, StarTech.com USB C to Mini DisplayPort Adapter, USB 3.1, 1 Supported Display(s) - 4K @ 60Hz

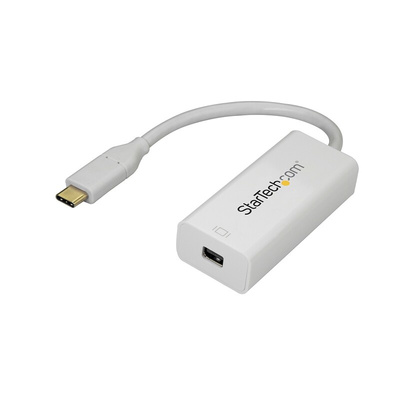

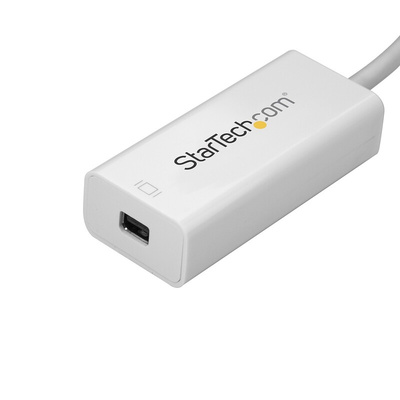

CDP2MDP USB C to mini DisplayPort Adapter

This USB Type-C to Mini DisplayPort adapter lets you output mini DisplayPort (mDP) video and audio from the USB Type-C port on your laptop or other device. It works with USB 3.1 or Thunderbolt 3 Type-C devices that pass an mDP video signal, such as your MacBook Pro, Chromebook or 2018 iPad Pro.

Enjoy High-Definition Resolution up to 4K at 60Hz

Harness the video capabilities that are built into your computer's USB-C connection, using the adapter to deliver the astonishing quality of UHD to your 4K 60Hz display.

You can achieve an output resolution of up to 3840 x 2160p at 60Hz, perfect for high-resolution tasks such as viewing 4K video. The USB-C video adapter is backward compatible with 1080p monitors or displays, which makes it a great accessory for workspace applications.

Hassle-Free Connection for Your USB Type-C Laptop

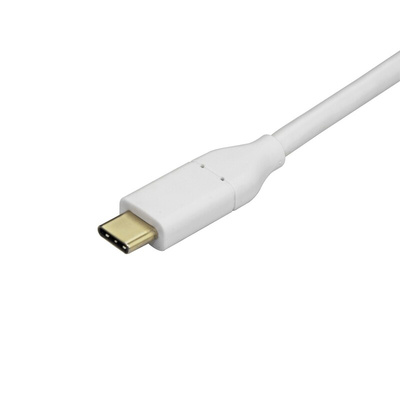

This adapter lets you use the versatile USB Type-C port on your portable device. USB-C is a reversible connector, enabling you to plug it into your device in any direction. The Thunderbolt 3 compatible adapter provides a hassle-free connection to your Windows or Mac based Thunderbolt 3 computer.

Lightweight Design for Easy Portability

The compact USB-C to mDP adapter is lightweight and fits perfectly in your laptop bag. Its portable design is ideal for BYOD (Bring Your Own Device) applications at the office or on the road. 

The CDP2MDP is backed by a 3-year StarTech.com warranty and free lifetime technical support.

Notes:
\t
Your USB-C device must support DisplayPort over USB-C (DP Alt Mode) to work with this adapter
\t
This adapter outputs a single-mode Mini DisplayPort signal and will not work with additional video adapters such as Mini DisplayPort to HDMI, Mini DisplayPort to VGA or Mini DisplayPort to DVI adapters

Features & Benefits

• Enjoy UHD video resolutions up to 4K 60Hz from your USB-C device
• Achieve a hassle-free connection with the reversible USB-C connector and Thunderbolt 3 compatibility
• Maximum portability with a lightweight and easy to transport design
• Compatible with Thunderbolt 3 and USB Type-C with DP Alt Mode

Applications

• Connect your USB-C laptop to an mDP display at work
• Deliver presentations on any boardroom mDP display from your laptop
• Connect a secondary monitor to your USB-C laptop

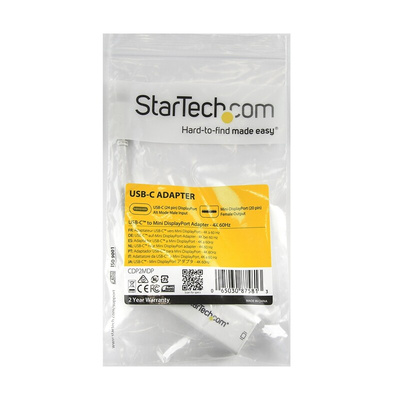

What’s in the package?

• USB-C to Mini DisplayPort adapter

FAQ

What is USB-C?

USB-C is a one of the latest advancements in USB connectivity. This USB connector type can carry video and data. This single connector supports multiple protocols and can carry everything from USB 1.1 to USB 3.2 Gen 2x2, as well as DisplayPort and HDMI (via Alt modes) and Thunderbolt 3 (on Thunderbolt 3 equipped laptops). This type can support the following:
Data transfer speeds up to 10Gbps, if you use USB 3.1.
Bi-directional power delivery up to 100W, if both the USB host connection and the device support it.
