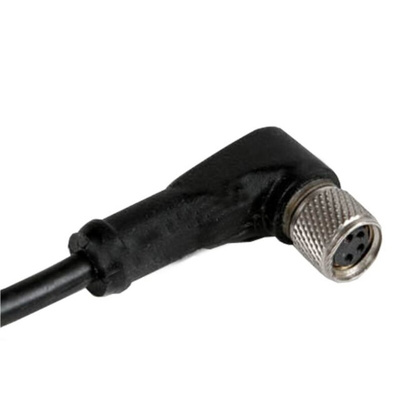

RS PRO Right Angle Female 4 way M8 to Unterminated Sensor Actuator Cable, 2m

RS PRO Cable Connector

The RS PRO M8 female right-angled cable connector has a voltage rating of 30V and a current rating of 4A. It has zinc copper alloy gold plated contacts and a high degree of environmental protection. This connector is left unterminated and is partially stripped at one end. It is fitted with a secure coupling nut and hence is an ideal solution for secure and reliable data transfer.

Features and Benefits

• Cable length: 2m
• Insulation resistance: Greater than or equal to 100MΩ
• Neoprene O-ring
• Brass nickel-plated coupling nut
• Operating temperature ranges between -25℃ and 75℃
• Jacket material: 4 core PUR multi strand
• Cable diameter: 4.9± 0.1mm

Applications

• Sensor
• Automation equipment
• Industrial use

Certifications

• IP67 rated
• CE certified
• TUV certified

RS PRO Datasheet
