UNIRAILS1U, Startech Server Rack Rails for use with HP or Apple Servers, IBM, OEM equipment Such as Dell

UNIRAILS1U Universal Server Rack Rails

These 1U server-rack rails let you mount non-rackmount equipment such as desktop servers, networking equipment or KVM switches, into your 19” server rack without sacrificing 1U of rack space, like you would with a traditional shelf. The rack rails are also a great solution for mounting equipment with damaged rails or discontinued OEM equipment such as Dell™, IBM®, HP® or Apple servers that no longer have rack rails available.

This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.

Turn non-rackmount equipment into 1U rackmount hardware

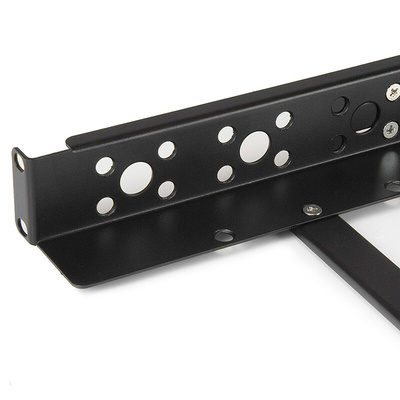

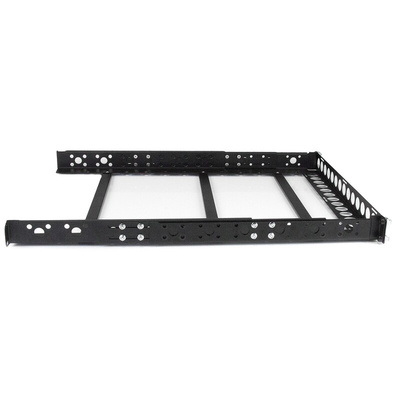

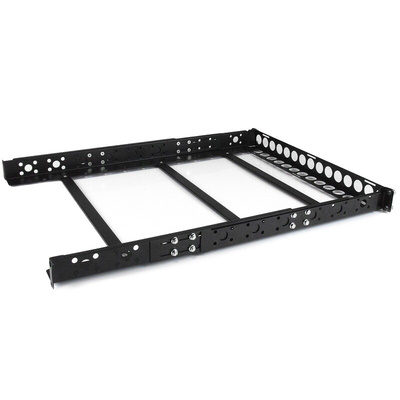

These rack rails add rackmount functionality to your non-rackmount gear, by cradling your equipment in an open frame supported by three sturdy crossbars. You can mount your non-rackmount equipment by mounting the rails to your server rack and placing your equipment on the undercarriage. For equipment that already features mounting holes, the rails also feature multiple mounting patterns to secure your equipment, for an added level of security.

Universal design mounts to almost any 19" server rack

Adhering to the EIA-310 standard for 19” rackmount equipment, these mounting rails are universally compatible with 19” server racks. The depth is adjustable for a variety of rack sizes and configurations. Plus, there is a rear cable management panel that’s removable for additional customization.

Maximum durability

To ensure your equipment is secure, these mounting rails feature cold-rolled steel construction. The durable design can support a weight load of up to 55 lb (25 kg).

The UNIRAILS1U is backed by a lifetime StarTech.com warranty with free technical support.

Features & Benefits

• Easily rack-mount your non-rackmount gear
• Mount equipment without sacrificing an additional 1U of rack space, unlike traditional rack shelves
• Keep your devices running cool with an open frame design that doesn’t impede airflow
• Universal support for EIA-310 19” server racks
• Maximum durability with cold-rolled steel construction
• TAA compliant for GSA Schedule purchases
• Removable rear cable management panel
• Weight capacity up to 25 kg (55 lb)
• Adjustable depth from 420 mm (16.5” ) - 1054 mm(41.5”)
• Multiple mounting hole patterns for securing your equipment
• Universal design mounts to almost any 19" server, or other equipment for maximum mounting versatility
• Three-piece rail construction allows for a wide range, adjustable depth configuration to accommodate almost any size of rack
• Cross bars allow for mounting of equipment that can't span the 19" rack expanse

Applications

• Mount rackmount equipment that’s missing its original rails
• Use to rackmount OEM equipment such as Dell, IBM, HP or Apple servers that no longer have rack rails available for purchase
• Securely mount non-rackmount equipment into any 19" EIA-310 server rack

What’s in the package?

• Set Universal Rack Rails
• M5 Panel Screws
• M5 Cage Nuts
• M5 Wrench

FAQs

What is the maximum weight capacity?
The maximum weight load is up to 25kg

Datasheet UNIRAILS1U
