RK15WALLO, StarTech.com Black 15U Steel Server Rack , with 2-Post Frame

RK15WALLO Wall Mount Patch Panel Rack

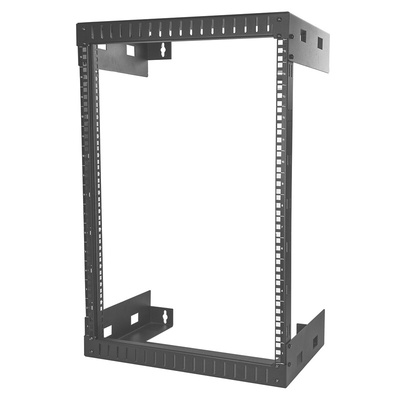

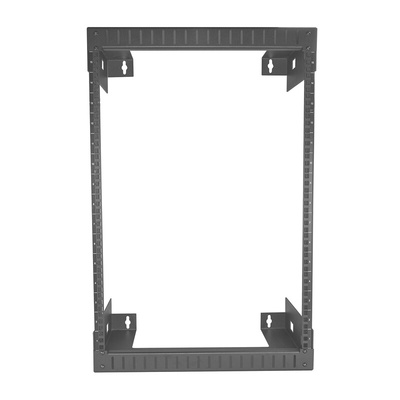

This open-frame wall-mount server rack provides 15U of storage, allowing you to save space and stay organized. The equipment rack can hold up to 198 lb. (90 kg).

Easy, hassle-free installation

The network rack is 12 in. (30.4 cm) deep, so it’s perfect for smaller spaces. It’s easy to assemble and features mounting holes that are spaced 16 in. apart, making it suitable for mounting on almost any wall, based on common wall-frame stud spacing. The wall-mount rack comes in a flat-pack making it easy to transport and reducing your cost in shipping.

Free up space

You can mount the open-frame rack where space is limited, such as on a server room wall, office, or above a doorway, to expand your workspace and ensure your equipment is easy to access.

Keep your equipment cool and accessible

By having an open frame the server rack provides passive cooling to equipment. Additionally, the open frame provides easy access and configurability to your equipment, allowing you to maximize productivity.

The RK15WALLO is backed by a StarTech.com 5-year warranty and free lifetime technical support.

Features & Benefits

• Save space by mounting your equipment on the wall
• Easy installation with mounting holes spaced 16 in. apart to match standard wall studs
• Comes in a flat-pack making it easy to transport
• Open frame provides passive cooling for equipment

Applications

• Perfect for installing network switches out of the way and high up on a wall in a branch office, warehouse, or superstore location
• Mount audio/video broadcast or distribution components
• Ideal for small and medium businesses requiring small rack solutions dispersed throughout the organization

What’s in the package?

• M6 Screws
• M6 Cage Nuts
• Washers
• Assembly Screws
• Vertical Rails
• Horizontal Brackets
• User Manual

FAQs

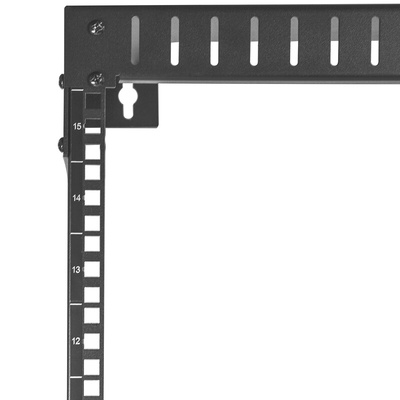

What is a “U” or rack unit measure?
A rack unit, commonly abbreviated as “U” or sometimes as “RU” is a standard unit of measure that is applied to rack mount equipment. One “U” is 1.75 inches (44.45mm).; the standard rack, at 19 inches, is a typical full-size rack at 42U, meaning it holds just over 180 cm of equipment. A typical half-height rack is 18-22U.

Rack servers and other rack mountable hardware equipment are designed in multiples of 1.75 inches and specified in multiples of rack units; One rack unit is “1U”, 2 rack units as “2U” and so on. Racks are built to hold equipment of those sizes.

Datasheet RK15WALLO
