RK12WALLOA, StarTech.com Black 12U Steel Server Rack , with 2-Post Frame

RK12WALLOA Wall Mount Rack for Network Switch

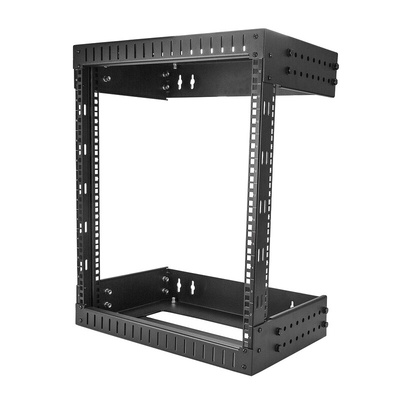

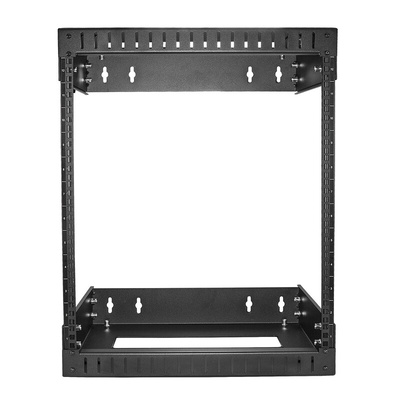

This open-frame wall-mount server rack provides 12U of storage, helping you to save space and stay organized. The equipment rack features an adjustable depth and can hold a total of up to 198 lb. (90 kg).

Easy, hassle-free installation

With adjustable depth to as low as 12 in. (30.4 cm) this network rack is perfect for smaller spaces. It’s easy to assemble and features wall-mounting holes that are spaced 12 and 16 in. apart, making it suitable for mounting on almost any wall, based on North American wall-frame stud-spacing standards. The wall-mount rack comes in a flat-pack, which makes it easy to transport and saves you money on shipping.

Accommodate larger devices

The open-frame rack adjusts from 12 to 20 in. (30.4 to 50.8 cm) to accommodate larger data, network, and telecommunication devices. The above-average depth also gives you the option to mount shelves and other accessories.

Free up space

When space is limited you can mount the open-frame rack on a server room wall, office, or above a doorway, to expand your workspace and ensure your equipment is easy to access.

Keep your equipment cool and accessible

The rack’s open frame design ensures passive cooling for your rack-mounted equipment. Additionally, the open frame provides easy access to your equipment and makes it easier to configure mounted devices, which saves you time.

The RK12WALLOA is backed by a StarTech.com 5-year warranty and free lifetime technical support.

Features & Benefits

• Accommodate larger devices with adjustable frame
• Free up space by mounting your equipment on the wall
• Easy installation with mounting holes spaced 12 and 16 in. apart to match standard wall studs
• Comes in a flat-pack making it easy to transport
• Open frame provides passive cooling for equipment

Applications

• Perfect for installing network switches out of the way and high up on a wall in a branch office, warehouse, or superstore location
• Mount audio/video broadcast or distribution components
• Ideal for small and medium businesses requiring small rack solutions dispersed throughout the organization

What’s in the package?

• Vertical Rails
• Front Horizontal Brackets
• Rear Horizontal Brackets
• M6 Cage Nuts
• M6 Screws
• Plastic Washers
• Assembly Screws
• Flat Washers
• Bolts
• User Manual

FAQs

What is a “U” or rack unit measure?
A rack unit, commonly abbreviated as “U” or sometimes as “RU” is a standard unit of measure that is applied to rack mount equipment. One “U” is 1.75 inches (44.45mm).; the standard rack, at 19 inches, is a typical full-size rack at 42U, meaning it holds just over 180 cm of equipment. A typical half-height rack is 18-22U.

Rack servers and other rack mountable hardware equipment are designed in multiples of 1.75 inches and specified in multiples of rack units; One rack unit is “1U”, 2 rack units as “2U” and so on. Racks are built to hold equipment of those sizes.

Datasheet RK12WALLOA
