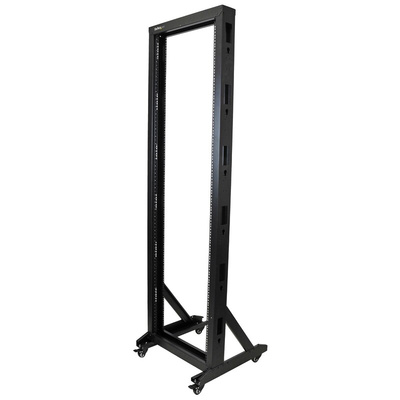

2POSTRACK42, StarTech.com Black 42U Steel Server Rack , with 2-Post Frame

2POSTRACK42 2 Post Open Frame Rack

Store your server, network and telecommunications equipment in this sturdy 42U rack. With a 2-post design, the rack saves floor space and its dual-post, open-depth design makes it broadly compatible with longer equipment.

Maximum portability

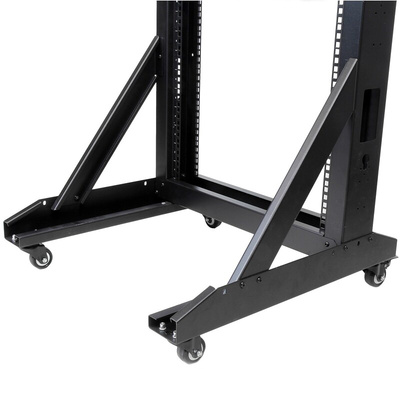

The 2-post rack features four swiveling casters, so you can easily move it around in your server room, office or studio. It’s easy to reposition or relocate the rack in order to connect your rack-mounted equipment to other devices throughout your workspace.

High durability

The durable dual-post server rack is made of heavy-gauge steel, instead of aluminum, to ensure a stable installation platform. The rack supports a static loading capacity of up to 600 lb. (272 kg), and it’s compliant with several industry rack standards (EIA/ECA-310, IEC 60297, DIN 41494), to provide a stable platform that eliminates the need for concrete mounting kits.

Wide compatibility

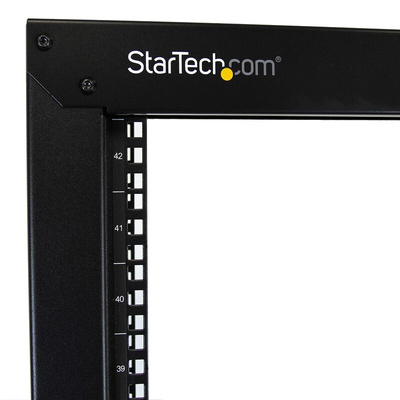

You can easily mount your ANSI/EIA RS-310-D compliant network equipment to the rack without using additional hardware. It features square mounting holes on the frame and a universal design that's compatible with most rack equipment.

The 2POSTRACK42 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Features & Benefits

• Maximum portability with four swiveling casters for easy transportation
• Widely compatible with most rack-mountable equipment with square mounting holes and a 2-post open frame design
• Superior durability and stability with full-steel construction
• 42U of mounting space
• Mount standard networking equipment using standard cage nuts and screws
• Easy assembly at the point of installation for rapid deployment

Applications

• Use in your server room or any location where telecommunication and networking equipment needs to be housed
• Create a portable video editing and production rack that you can move around your studio to interface with different equipment

What’s in the package?

• Bottom Supporting Beams
• Vertical Rails
• Horizontal Rails
• Angle Support Beams
• 2" Heavy-Duty Casters
• 2" Heavy-Duty Locking Casters
• M6 Screws
• M6 Nuts
• M6 Caster Screws
• M6 Cage Nuts
• M6 Rack Screws
• Plastic Washers
• Hex Key 4mm
• Quick Install Guide

FAQs

What is a “U” or rack unit measure?
A rack unit, commonly abbreviated as “U” or sometimes as “RU” is a standard unit of measure that is applied to rack mount equipment. One “U” is 1.75 inches (44.45mm).; the standard rack, at 19 inches, is a typical full-size rack at 42U, meaning it holds just over 180 cm of equipment. A typical half-height rack is 18-22U.

Rack servers and other rack mountable hardware equipment are designed in multiples of 1.75 inches and specified in multiples of rack units; One rack unit is “1U”, 2 rack units as “2U” and so on. Racks are built to hold equipment of those sizes.

Datasheet 2POSTRACK42
