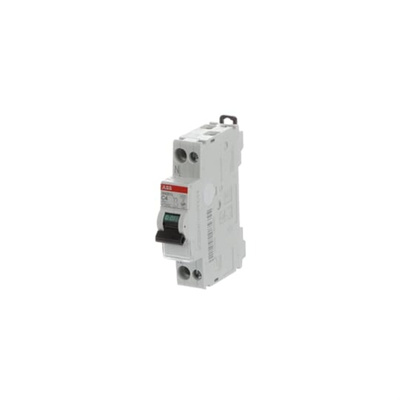

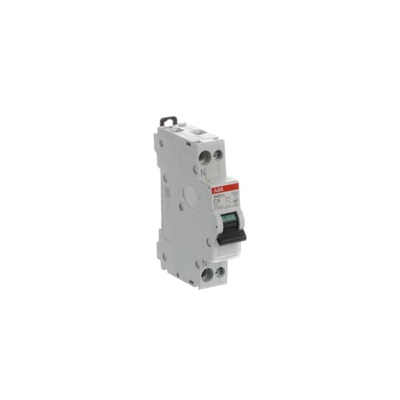

470232, ABB SN201 MCB, 1P+N, 4A Curve C, 230V AC, 4.5 kA Breaking Capacity

ABB MCB, IP20 Rating, Screw Terminals - SN201 Series - 470232

When it comes to automatic circuit protection, get ahead of the curve with this MCB from ABB. As it has type-C tripping characteristics, the breaker trips at surges five to ten times its 4A current rating. A 1P+N design means it protects installations where you need to switch between single pole and neutral positions, all from a single-module device. This MCB keeps low-voltage motors and lighting systems safe during sudden fluctuations thanks to a breaking capacity of 4.5kA at maximum voltage.

Features & Benefits

• Compact dimensions of 69 (L) x 18 (W) x 85mm (D) for applications where space is limited
• IP20 rating means it's touch-proof and protected against objects over 12mm
• Can be mounted in any position to best suit your setup
• Red and green indicators give clear visuals of the contact position

Applications

• Production lines
• Construction sites
• Retail units

What conditions can I use this MCB in?

This robust device performs in challenging industrial settings, thanks to an operating temperature range between -25°C and +55°C.

How much does this unit weigh?

Tipping the scales at just 110g, this MCB won't weigh down your system.

Datasheet 2CSS245102R0044
