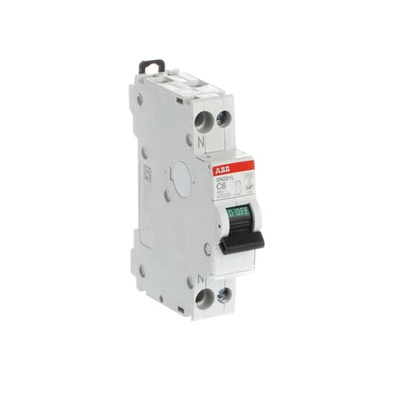

2CSS245102R0064, ABB SN201 MCB, 1P+N, 6A Curve C, 230V AC, 4.5 kA Breaking Capacity, Автоматический выключатель

ABB MCB, 110g Weight, 10,000 Cycle Electrical Endurance - SN201 Series - 2CSS245102R0064

Stop high inrush currents in a jiffy using this MCB from ABB. In the event of current overload, the breaker reacts immediately to shut off power, protecting your electrical equipment. Type-C tripping characteristics mean the device is triggered at five to ten times its rated current of 6A. With a 4.5kA breaking capacity, it's a good fit for managing small motors and fluorescent lighting systems. It's safe for handling, too, thanks to an IP20-rated thermoplastic enclosure that prevents shocks. Screw-in terminals mean installation takes just a jiffy.

Features & Benefits

• Broad operating temperature range between -25°C and +55°C for use in challenging conditions
• Efficient design with minimal power loss of 2.3W during use
• Works for the long haul with mechanical endurance of 20,000 cycles
• Versatile design for mounting in any position

Applications

• Food and beverage manufacturing
• Retail displays
• Automated production lines

What size is this MCB?

The compact and lightweight unit weighs 110g and is just 69 (L) x 18 (W) x 85mm (H) in size, so you can rest assured it fits easily into crowded setups.

Datasheet 2CSS245102R0064
