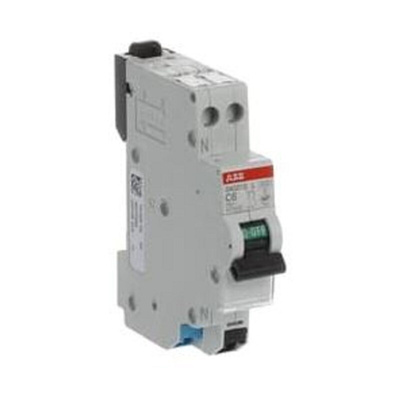

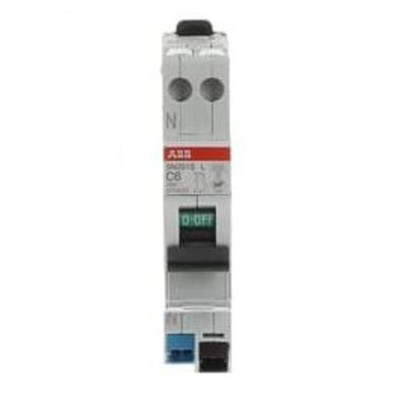

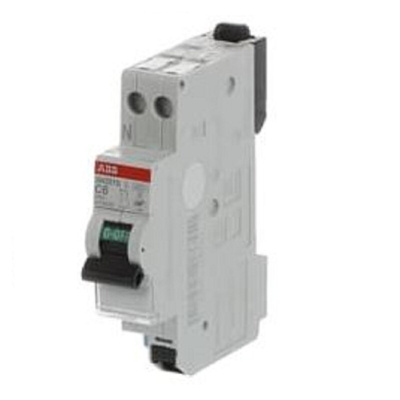

2CSS245202R0064, ABB SN201 MCB, 1P+N, 6A Curve C, 230V AC, 4.5 kA Breaking Capacity

ABB MCB, 11mm Wire Stripping Length, IP20 Rating - SN201 Series - 2CSS245202R0064

When currents run high, protect your circuits from overloading using this 1P+N MCB from ABB. It shuts down potentially damaging power spikes and short circuits in a flash. A 230V AC voltage rating makes this breaker compatible with small motors and industrial equipment. Thanks to a broad operating temperature range between -25°C and +55°C, it's suitable for use in harsh environments. There's no need to fiddle around with screws during installation – simply clip it directly onto your DIN rail for quick and easy set-up.

Features & Benefits

• Mechanical endurance of 20,000 cycles indicates you'll get reliable performance in the long term
• IP20 rating means it's touch-proof and protected from objects over 12mm in size, like small tools
• Weighs just 110g, so it won't strain your existing system
• Compact dimensions of 69 (L) x 85 (D) x 18mm (W) fit into a crowded cabinet

Applications

• Automotive maintenance and repairs
• Consumer electronics
• Printing presses

When does the MCB trip?

As this breaker has type-C tripping characteristics, it trips when it receives five to ten times the rated current of 6A.

Datasheet 2CSS245202R0064
