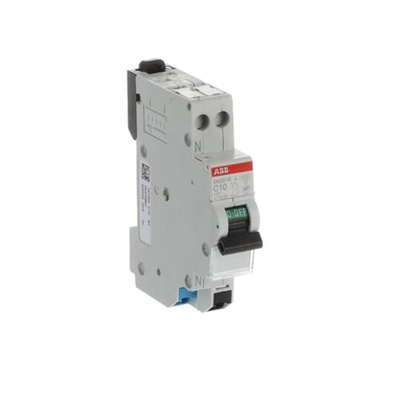

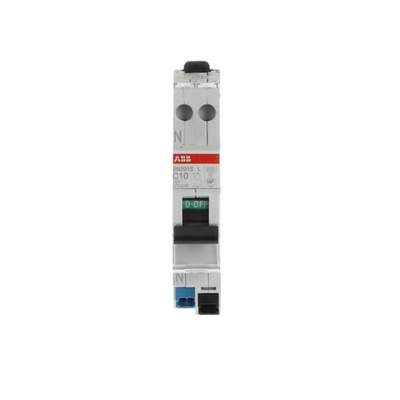

2CSS245202R0104, ABB SN201 MCB, 1P+N, 10A Curve C, 230V AC, 4.5 kA Breaking Capacity

ABB MCB, 4kV Rated Impulse Withstand Voltage, 1P+N - SN201 Series - 2CSS245202R0104

Boost your system's electrical safety with this MCB from ABB. It does double duty by safeguarding against overloads and short circuits to prevent equipment damage and unnecessary downtime. Thanks to its modular design, you can couple it with other parts to streamline power delivery. The slender component, with dimensions of 69 (L) x 18 (W) x 85mm (H), squeezes easily into tight spaces. A 10A current rating makes it a good fit for different applications in industrial, commercial and domestic environments. IP40-rated housing shields the internal components against small tools and wires that can cause accidental damage. To make installation a cinch, the MCB clips simply onto a DIN rail.

Features & Benefits

• Screwless terminals help to speed up connection
• Toggle switch for at-a-glance contact position and problem detection
• Mechanical endurance of 20,000 cycles for consistent reliability
• Broad operating temperature scope between -25°C and +55°C makes it suitable for use in demanding conditions

Applications

• TN systems
• IT networks
• Medical equipment
• Commercial and domestic installations

Can this MCB withstand vibration?

Yes, it's shock resistant to help prevent accidental disconnection in vibrating environments.

Does this MCB have a neutral conductor?

Yes, this is a 1P+N device, meaning it has an integrated neutral conductor on the left for trickier applications.

Datasheet 2CSS245202R0104
