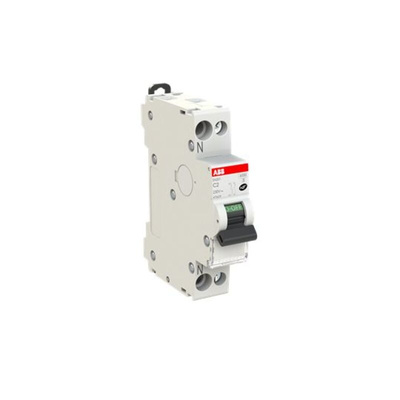

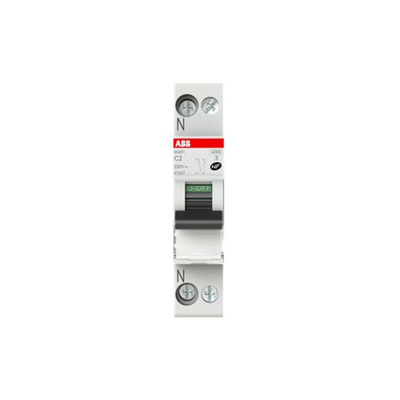

2CSS255102R0024 / 470629, ABB SN201 MCB, 1P+N, 2A Curve C, 230V AC, 6 kA Breaking Capacity

ABB MCB, DIN Rail Mounting, 20,000 Cycles Mechanical Endurance - SN201 Series - 470629

Put this trusty MCB from ABB to work watching over your electrical equipment. As soon as it senses a current overload or short circuit, it quickly cuts off power to the circuit. The unit has a type C tripping characteristic, so it trips when it receives between 5 and 10 times its full load current of 2A. With a built-in contact position indicator on-hand to show you if it's on or off, you can rest assured that checking the status of this device can be done on the run.

Features & Benefits

• Mechanical endurance rating of 20,000 cycles for long-term performance
• Ambient operating temperature range between -25°C and +55°C ensures it's safe to use in challenging environments
• Integrated toggle for easy resetting at the flip of a switch
• Resistance to shock and vibration helps prevent false tripping in demanding conditions

Applications

• Power stations
• Manufacturing industry
• HVAC systems
• Aerospace engineering

How do I mount this MCB?

You can mount this MCB by simply clipping it onto a DIN rail. To give you flexibility, it can be installed in any position to suit your needs.

Datasheet 2CSS255102R0024
