MXT10050CMBK, Startech Serial Cable Assembly 500mm DB-9 (9 Pin, D-Sub) Male to DB-9 (9 Pin, D-Sub) Female, Кабель

MXT10050CMBK Serial Extension Cable

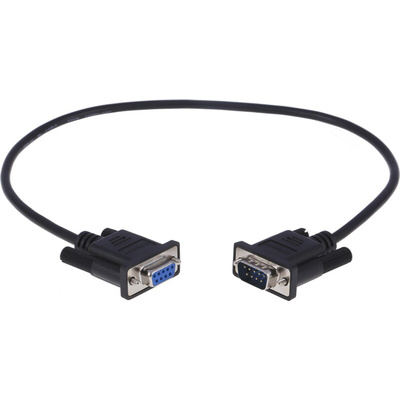

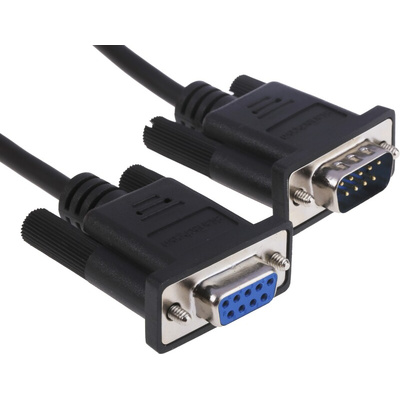

The MXT10050CMBK Black Serial Extension Cable (0.5m) features one DB9 male connector and one DB9 female connector, providing a high quality extension for your RS232 serial devices, which enables you to position your peripheral devices as needed.
Expertly designed and constructed of top quality materials to ensure durability, this DB9 extension cable is backed by our Lifetime Warranty.

Features & Benefits

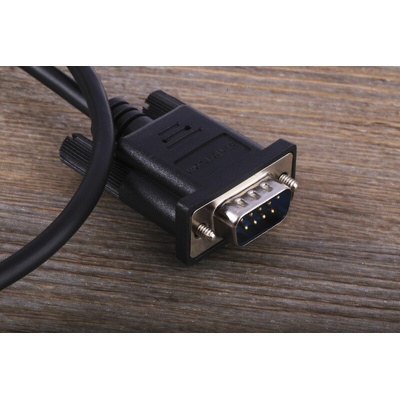

• 1x DB9 Serial (male) connector

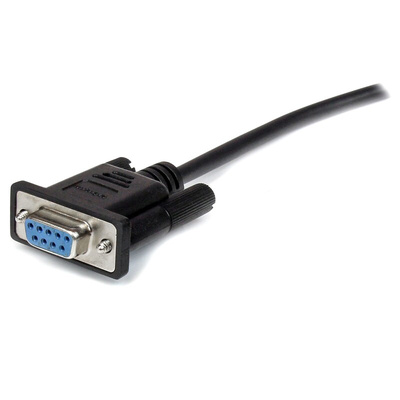

• 1x DB9 Serial (female) connector
• High quality shielding prevents EMI interference
• DB9 connectors with strain relief molding
• Allows you to extend the reach of your serial devices by up to 0.5 meters, reducing cable length restrictions and providing flexibility for positioning your serial devices as needed
• High quality cable shielding helps prevent EMI interference
• Backed by StarTech.com lifetime warranty for dependable performance

Applications

• Extend RS232 serial connections by up to 0.5 meters

The MXT10050CMBK Black Serial Extension Cable (0.5m) features one DB9 male connector and one DB9 female connector, providing a high quality extension for your RS232 serial devices, which enables you to position your peripheral devices as needed.
Expertly designed and constructed of top quality materials to ensure durability, this DB9 extension cable is backed by our Lifetime Warranty.

What’s in the package?

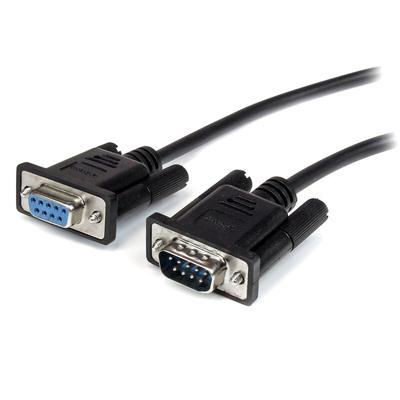

• 0.5m Black Straight Through Serial Cable - DB9 M/F

FAQs

What is the difference between a straight-through and null modem serial cable?
A null modem serial cable or sometimes referred to as crossover cable, connects two DTE devices without the use of a DCE devices in between. For this to happen, the Transmit (TXD) and Receive (RXD) pins on one of the serial connectors are flipped. Whereas a straight-through serial cable is a serial cable type, usually used to connect a DTE device to a DCE device. The pinout of the serial connectors on both sides of the cable usually the same and have a straight through serial cable.

Datasheet MXT10050CMBK
