ICUSB23216FD, StarTech.com RS232 USB A Female to DB-9 Male Interface Converter

StarTech.com Converter, 16 Serial Ports, One USB Port - ICUSB23216FD

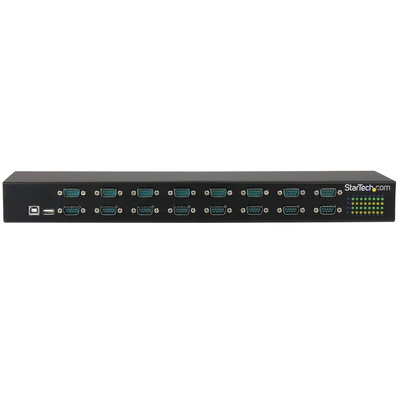

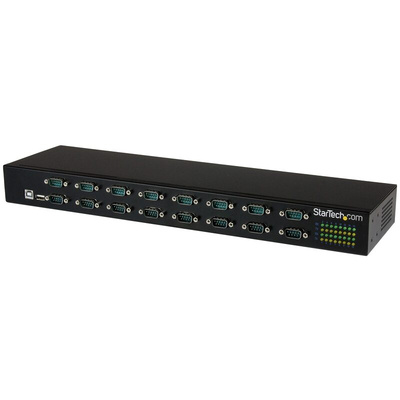

Make this USB-to-serial converter from StarTech.com the hub of your communications. With 16 RS232 serial ports, you can network your industrial, security or automation devices. Thanks to the USB port, you'll have no trouble hooking it up to your computing equipment. This means you can control and monitor your whole operation from a single laptop or desktop.

Features & Benefits

Easy expansionAs this converter supports the daisy-chaining of devices, you can easily hook it up to multiple hubs and increase your number of ports further.
Convenient to useA USB-to-serial chipset automatically connects the different port types. This keeps installation swift and ensures that unplugging or rebooting doesn't cause communication problems.

• Rugged metal chassis can take a knock
• Integrated resistor terminates line signals correctly

FAQs

Can I mount this converter hub on a rack?Yes. This converter is sized to fit into any standard 19-inch server rack.

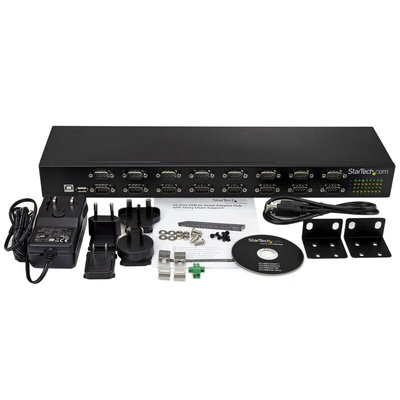

What's in the box?

• 1x 16 Port USB to RS232 hub
• 1x USB cable
• 2x Rack mounting brackets
• 8x Rack mounting screws
• 2x DIN rail mounting brackets
• 4x DIN rail mounting screws
• 4x Washers
• 4x Nuts
• 1x Universal power adapter (NA/JP, EU,UK, ANZ)
• 1x Driver CD
• 1x Terminal block plug
• 1x Quick-start guide

Chipset Manufacturer

FTDI

Chipset Model

FT232RL

Cable Length

0.3 m

What is the Serial Protocol of this Adapter?

RS-232

Maximum Baud Rate

921kbit/s

This adapter has COM retention.

Datasheet ICUSB23216FD

ST-Serial Converters and Extenders

Manual - ICUSB23216FD
