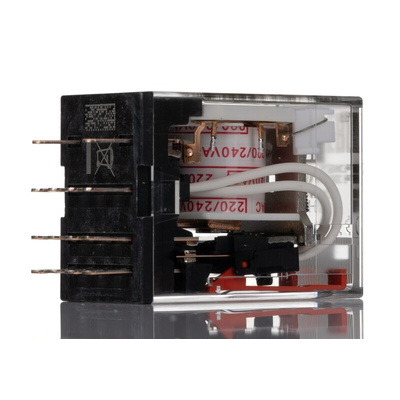

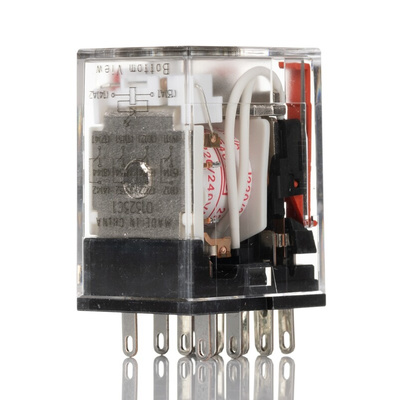

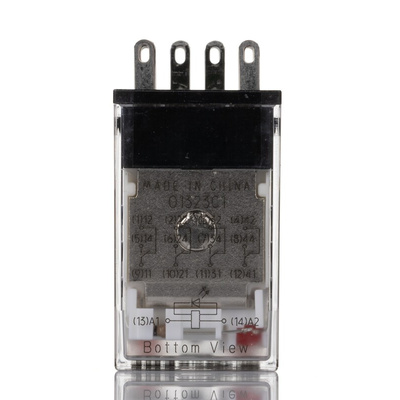

MY4N-GS AC220/240, Omron Plug In Power Relay, 220 → 240V ac Coil, 3A Switching Current, 4PDT, Реле

OMRON Power Relay, 15,920Ω Coil Resistance, 4 Poles - MY Series - MY4N-GS 220/240VAC

Do you need a switching solution that's suitable for powerful equipment? Trust this OMRON power relay to take the reins. Supplying it with 220 to 240V AC lets you open or close a connected circuit with a voltage rating of up to 250V AC. It delivers up to 2,400 operations an hour, so you can rest assured it handles heavy use in applications like conveyors. With a light weight of 35g, this product doesn't put a strain on your setup.

Features & Benefits

• Performs reliably in a broad operating temperature range between -40°C and +70°C
• Maximum current rating of 6.2mA, so it's an energy-saving option
• Withstands voltage surges thanks to its dielectric strength of up to 2000V AC
• Built-in LED indicator for hassle-free monitoring
• Endurance rating of 50 million operations assures you it's with you for the long haul

Applications

• Power generation
• Telecommunications networks
• Lighting rigs

Is this relay suitable for warehouse use?

Yes – although warehouses are prone to high moisture levels, this power relay holds its own, thanks to a maximum operating humidity of 85% RH.

Can this unit control DC circuits?

Yes, it can. For versatility, this relay lets you operate a DC circuit with a maximum voltage of 220V.

Datasheet MY4N-GS 220/240VAC
