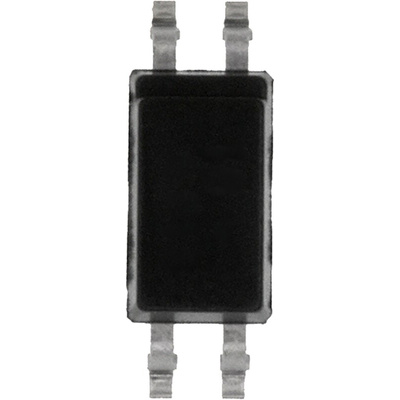

Renesas Electronics Renesas, PS2802-1-A DC Input Darlington Output Optocoupler, Surface Mount, 4-Pin SSOP

DC input/Darlington transistor output photocouplers (optocouplers) are optically coupled isolators containing a GaAs infrared light emitting diode and an NPN silicon Darlington connected phototransistor. This type can operate on a low-current DC input because of its Darlington configuration.

The PS2802-1 and PS2802-4 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon darlington-connected photo transistor in a plastic SSOP for high density applications. This package has shield effect to cut off ambient light.

High isolation voltage (BV = 2 500 Vr.m.s.)
Small and thin package (4,16-pin SSOP, Pin pitch 1.27 mm)
High current transfer ratio (CTR = 2 000% TYP. @ IF = 1 mA, VCE = 2 V)
APPLICATIONS
Programmable logic controllers
Measuring instruments
Hybrid IC

Datasheet PS2802-1-F3-A
