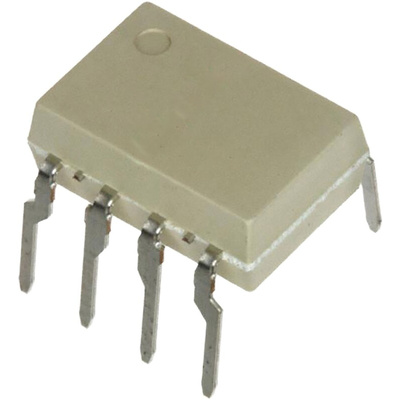

Renesas Electronics Renesas, PS8502L2-V-AX Photodiode Output Optocoupler, Surface Mount, 8-Pin DIP

The PS8502, PS8502L1, PS8502L2 and PS8502L3 are 8-pin high speed photocouplers containing a GaAIAs LED on input side and a PN photodiode and a high speed amplifier transistor on output side on one chip. The PS8502 is in a plastic DIP (Dual In-line Package) with 8 mm creepage distance product. The PS8502L1 is lead bending type for long creepage distance. The PS8502L2 is lead bending type for long creepage distance (Gull-wing) for surface mount. The PS8502L3 is lead bending type (Gull-wing) for surface mounting.

Long creepage distance (8 mm MIN.: PS8502L1, PS8502L2)
High common mode transient immunity (CMH, CML = ±15 kV/μs MIN.)
High supply voltage (VCC = 35 V MAX.)
High speed response (tPHL, tPLH = 0.8 μs MAX.)
High isolation voltage (BV = 5 000 Vr.m.s.)
TTL, CMOS compatible with a resistor
Pb-Free product
APPLICATIONS
Interface for measurement or control equipment
Substitutions for relays and pulse transformers
Modem, communications device
General purpose inverter

Datasheet PS8502L2-V-E3-AX
