NSYMM3025, Schneider Electric Spacial Series Galvanised Steel Mounting Plate, 300mm H, 250mm W, 200mm L for Use with Spacial CRN,

IP66 Wall Boxes

Doors open 120° and incorporate a foamed-in polyurethane gasket, suspended on (removable) concealed stainless steel hinges
M6 x 15 earth bolts on the body and doors
Boxes greater than 400 mm high have two locks
Hinges are mounted along height dimension
Material 304 / 1.4301 stainless steel
IP66 protection

Note

For Use With refers to compatible chassis plates.

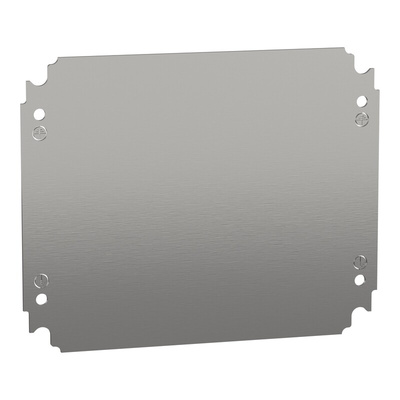

Schneider Electric Enclosure Accessory, Mounting Plate Type, 250 (H) x 200mm (W) - Spacial Series - NSYMM3025

Need a firm foundation to install electronic components in your wall boxes? Go for this enclosure accessory from Schneider Electric. It provides a surface to support the weight of devices like circuit breakers and terminal blocks, ensuring they're securely assembled. The unit also serves as a grounding point, carrying excess charges to the earth to ensure electrical safety. Thanks to its galvanised steel construction, it holds its own against rust and impact, making it fit for use in harsh environments. Despite its slim 1.8mm thickness, it carries up to 60kg of load, so you'll find it useful in heavy-duty applications.

Features & Benefits

• Free from mercury and toxic heavy metals, so it's an environmentally friendly option
• Light weight of 706g for easy handling during installation
• M8 screw holes enable simple and time-efficient assembly

Applications

• HVAC systems
• Telecommunications
• Packaging plants
• Manufacturing facilities

Which enclosures is this accessory compatible with?

This versatile unit is compatible with various enclosures, including those in the NSYA (211-0830), NSYVDM (236-3055) and S3X (186-4956) series.
