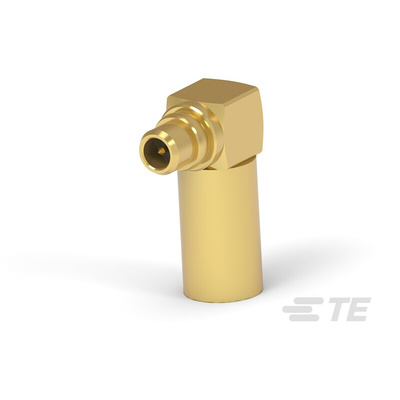

1-1634002-0, TE Connectivity, Plug Cable Mount MMCX Connector, 50Ω, Clamp, Solder Termination, Right Angle Body, Разъем

TE Connectivity 1-1634002-0

RF Interface=MMCX, RF Connector Style=Plug, Connector System=Cable-to-Cable, Sealable=No, Connector & Contact Terminates To=Wire & Cable, Port Configuration=Single Port, Number of Positions=1, Number of Coaxial Contacts=1, Impedance=50 Ω, Body Shape=Circular, Cable Connector Orientation=Right Angle, Body Material=Brass, Body Finish=Plated, Body Plating Material=Gold, Crimp Type=Hex, RF Connector Center Contact Plating Material=Gold, RF Connector Center Contact Material=Brass, Termination Method to Wire & Cable=Solder & Clamp, RF Connector Coupling Mechanism=Snap-On, RF Contact Captivation Method=Solder, Detent=Without, Cable Type=Raychem 5026A1318,Raychem 5026A1331,Raychem 5026A1631,Raychem 5026C1309,Raychem 5026D1028,Raychem 5026D1424,Raychem CLFH-178,Raychem EPD 26995Q,RG 174,RG 188 A/U,RG 316/U,URM95, Operating Temperature Range=-55 – 155 °C, Operating Frequency=6 GHz, Packaging Quantity=50, Packaging Method=Individual, Grade=Professional, Dielectric Material=PTFE

Datasheet
