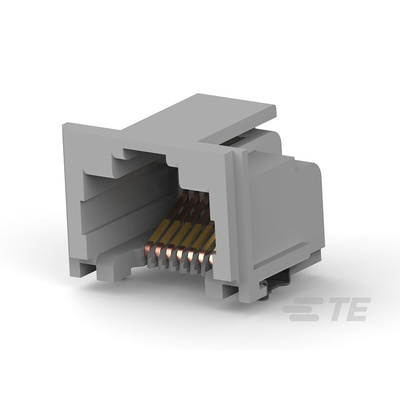

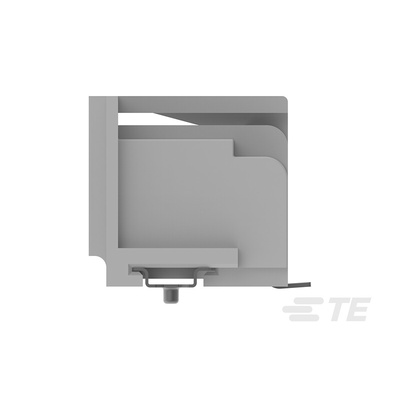

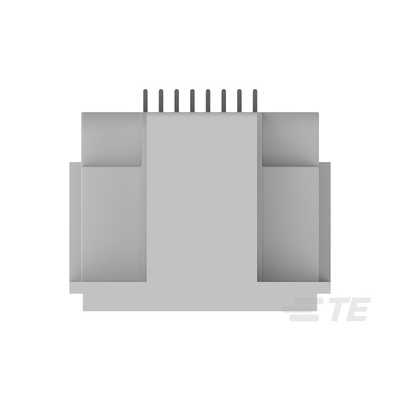

5406721-1, TE Connectivity 5406721 Series Female RJ45 Connector, Surface Mount, Cat5, Разъем

TE Connectivity 5406721-1

Connector Product Type=Connector Assembly, Modular Jack & Plug Interface Type=RJ45, Modular Jacks & Plugs Products=RJ Type Jacks & Plugs, Modular Connector Style=Jack, Grounding Options=None, Keyed=No, Port Configuration=Single Port, Port Matrix Configuration=1 x 1, Connector Contact Density=Standard, Status Indicator=None, Modular Jack Latch Orientation=Inverted - Latch Up, Connector Profile=Low, PCB Contact Termination Area Plating Material=Tin, Contact Mating Area Plating Material=Gold, Contact Base Material=Copper Alloy, Contact Mating Area Plating Material Thickness=.76 μm, Termination Method to Printed Circuit Board=Surface Mount, PCB Mount Retention Type=Boardlock, Connector Mounting Type=Board Mount,Panel, Mating Entry Location=Side, Centerline (Pitch)=1.02 mm, Housing Color=Gray, Housing Material=High Temperature Thermoplastic, PCB Thickness (Recommended)=1.57 mm, PCB Tail Length=1.52 mm, Connector Height=12.4 mm, Operating Temperature Range=-40 – 70 °C, Shielded=No, Circuit Application=Signal, UL Flammability Rating=UL 94V-0, Performance Category=Cat 5, Packaging Quantity=650, Packaging Method=Tape & Reel

Datasheet

Datasheet 5406721-1
