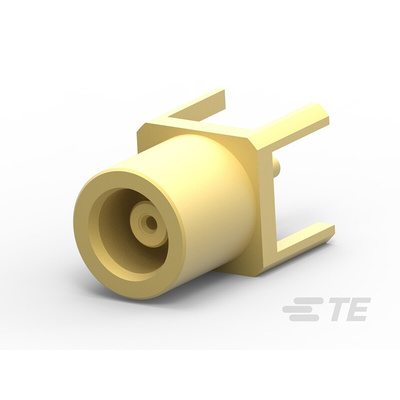

1-1337581-0, TE Connectivity, jack Through Hole MCX Connector, 50Ω, Solder Termination, Straight Body, Разъем

TE Connectivity 1-1337581-0

RF Interface=MCX, RF Connector Style=Jack, Connector System=Cable-to-Board, Sealable=No, Connector & Contact Terminates To=Printed Circuit Board, Number of Mounting Legs=4, Port Configuration=Single Port, Number of Positions=1, PCB Mount Orientation=Vertical, Number of Coaxial Contacts=1, Impedance=50 Ω, Body Shape=Square, Body Material=Brass, Body Plating Material=Gold, RF Connector Center Contact Plating Material=Gold, RF Connector Center Contact Material=Beryllium Copper, Termination Method to Printed Circuit Board=Through Hole - Solder, PCB Mount Retention=Without, RF Connector Coupling Mechanism=Snap-On, Connector Mounting Type=Board Mount, RF Contact Captivation Method=Mechanical, Detent=Without, PCB Thickness (Recommended)=3.2 mm, RF Connector Mated Outer Diameter (Approximate)=5.35 mm, Height Above PC Board=10 mm, PCB Tail Length=4 mm, Operating Temperature Range=-65 – 165 °C, Operating Frequency=6 GHz, Packaging Quantity=50, Packaging Method=Container, Grade=Professional, Dielectric Material=PTFE

Datasheet
