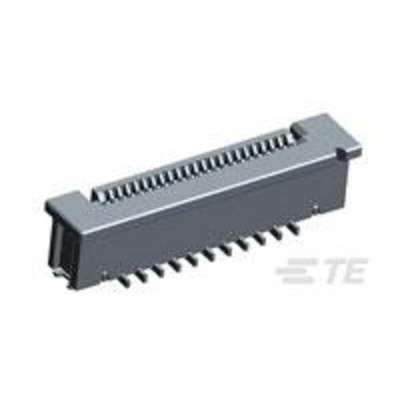

2-1734742-0, TE Connectivity, 1734742 0.5mm Pitch 20 Way Vertical Female FPC Connector, ZIF Bottom Contact, Разъем

TE Connectivity 2-1734742-0

Connector Product Type=Connector Assembly, Connector System=Flex-to-Board, Insertion Force Type=Zero Insertion Force (ZIF), FPC Actuator Type=Stuffer (Plunger Style), Sealable=No, Number of Rows=1, Number of Positions=20, PCB Mount Orientation=Vertical, Operating Voltage=50 VAC, Contact Base Material=Phosphor Bronze, Contact Mating Location=Bottom, Contact Mating Area Plating Material=Gold, Contact Current Rating (Max)=.5 A, Termination Method to Printed Circuit Board=Surface Mount, Mating Alignment=With, PCB Mount Alignment=Without, PCB Mount Retention=With, Connector Mounting Type=Board Mount, Housing Color=Black, Centerline (Pitch)=.5 mm, Connector Length=15.7 mm, Connector Height=4.15 mm, Connector Width=3.8 mm, Accepts Flex Cable Thickness=.3 mm, Operating Temperature Range=-20 – 85 °C, Circuit Application=Signal, Circuit Identification Feature=Without, Packaging Method=Tape
