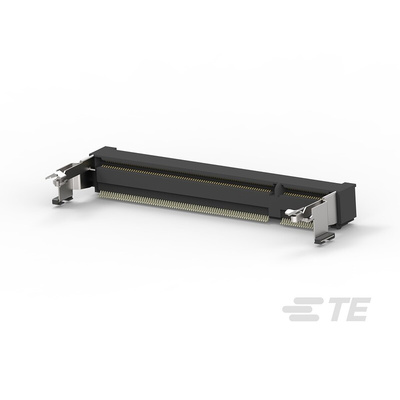

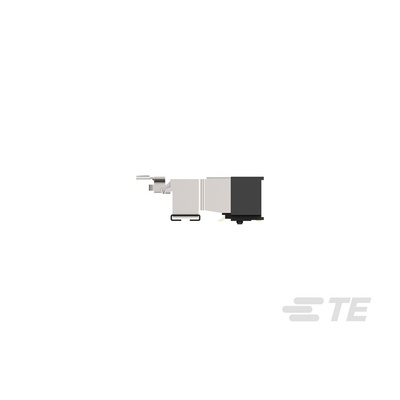

1612618-1, TE Connectivity 0.6mm Pitch 200 Way, Right Angle SMT Mount SO DIMM Socket ,2.5 V ,500.0mA, Разъем

TE Connectivity 1612618-1

DRAM Type=Double Data Rate (DDR), Connector System=Cable-to-Board, Profile=Ultra High, Row-to-Row Spacing=6.2 mm, Sealable=No, Center Key=None, Module Orientation=Right Angle, Number of Positions=200, Number of Rows=2, Keying=Standard, DRAM Voltage=2.5 V, SGRAM Voltage=2.5 V, Ejector Type=Locking, Contact Base Material=Copper Alloy, Contact Mating Area Plating Material=Gold Flash, Contact Current Rating (Max)=.5 A, Socket Type=Memory Card, Insertion Style=Cam-In, PCB Mount Retention Type=Solder Peg, PCB Mounting Style=Surface Mount, Connector Mounting Type=Board Mount, Centerline (Pitch)=.6 mm, Housing Color=Black, Stack Height=9.2 mm, Operating Temperature Range=-55 – 85 °C, Circuit Application=Power, UL Flammability Rating=UL 94V-0, Packaging Method=Semi-Hard Tray Assembly, Packaging Quantity=20, Comment=Semi-Hard Tray with 20 sockets PN 1279284-1

Datasheet
