1-1337479-0, TE Connectivity, jack Cable Mount MCX Connector, 50Ω, Crimp Termination, Straight Body, Разъем

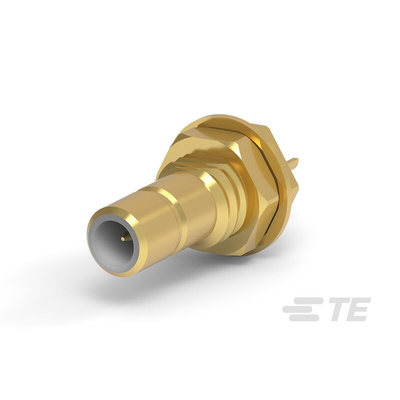

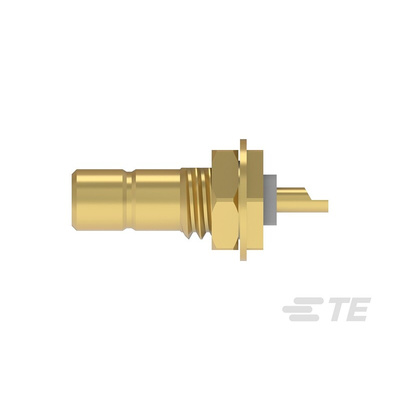

TE Connectivity 1-1337479-0

Connector Product Type=Connector Assembly, RF Interface=SMB, RF Connector Style=Jack, Connector System=Cable-to-Panel, Sealable=No, Port Configuration=Single Port, Number of Positions=1, Number of Coaxial Contacts=1, Impedance=50 Ω, Body Shape=Hexagonal, Cable Connector Orientation=Straight, Body Material=Brass, Body Plating Material=Gold, RF Connector Center Contact Plating Material=Gold, RF Connector Center Contact Material=Brass, Termination Method to Wire & Cable=Crimp, Panel Mount Feature Type=Hex Nut, RF Connector Coupling Mechanism=Snap-On, Connector Mounting Type=Panel, RF Contact Captivation Method=Mechanical, Detent=Without, Product Length=15.4 mm, RF Connector Mated Outer Diameter (Approximate)=4.75 mm, Operating Temperature Range=-65 – 165 °C, Operating Frequency=4 GHz, Packaging Quantity=100, Packaging Method=Tray, Military Style Number=UG-1455/U, Dielectric Material=PTFE

Datasheet
