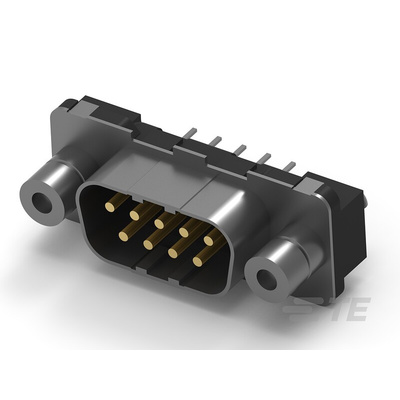

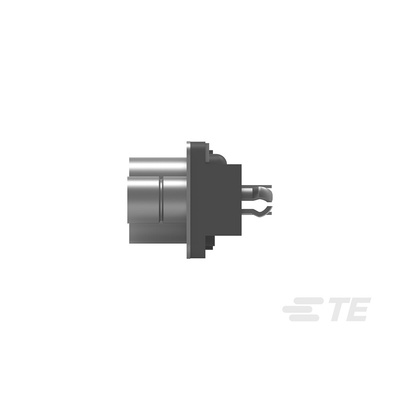

3-338309-2, TE Connectivity 9 Way Through Hole D-sub Connector Plug, Разъем

TE Connectivity 3-338309-2

Shell Type=Front Metal Shell, Connector Style=Plug, Connector System=Cable-to-Board, Row-to-Row Spacing=.112 in,2.84 mm, Shell Size=1, Performance Level=Level 2, Number of Positions=9, Number of Rows=2, PCB Mount Orientation=Vertical, Preloaded=Yes, Plastic=No, Shell Material=Steel, Contact Base Material=Phosphor Bronze, Contact Shape & Form=Round, Contact Current Rating (Max)=6 A, Contact Mating Area Plating Material=Gold, Grounding Clips=Without, Termination Post Length=3.2 mm, Panel Mount Feature=Without, PCB Mounting Style=Through Hole - Solder, PCB Mount Retention=With, PCB Mount Retention Type=Boardlock, Mating Connector Lock=With, Centerline (Pitch)=2.74 mm, Housing Color=Black, PCB Thickness (Recommended)=1.6 mm, Operating Temperature Range=-55 – 105 °C, Circuit Application=Signal, Approved Standards=DIN 41652, UL Flammability Rating=UL 94V-0, Packaging Quantity=55

Datasheet
