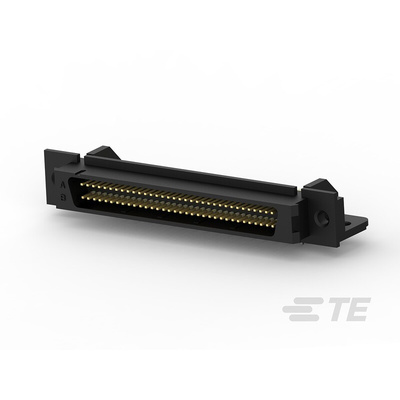

2-5174225-5, TE Connectivity 68 Way Right Angle Through Hole D-sub Connector Plug, Разъем

TE Connectivity 2-5174225-5

Shell Type=Full Metal Shell, Connector Style=Plug, Connector System=Cable-to-Board, Row-to-Row Spacing=.1 in,2.54 mm, Profile=Standard, Number of Positions=68, Number of Rows=2, PCB Mount Orientation=Right Angle, Post Plating Material=Tin over Nickel, Shield Plating Material=Nickel over Copper, Contact Base Material=Phosphor Bronze, Contact Shape & Form=Square, Contact Mating Area Plating Material=Gold, Termination Method to Printed Circuit Board=Through Hole - Solder, Termination Post Length=2.9 mm, PCB Mount Alignment=Without, PCB Mounting Style=Through Hole - Solder, PCB Mount Retention=With, PCB Mount Retention Type=Mounting Hole, Mating Connector Lock=With, Centerline (Pitch)=1.27 mm, Housing Color=Black, Operating Temperature Range=-55 – 105 °C, Circuit Application=Signal, Post Plate Flammability Rating=UL 94V-0, UL Flammability Rating=UL 94V-0, Packaging Quantity=4

Datasheet
