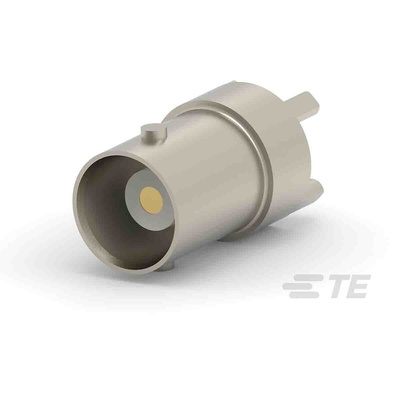

5-1634506-1, TE Connectivity, jack Through Hole BNC Connector, 50Ω, Solder Termination, Straight Body, Разъем

TE Connectivity 5-1634506-1

RF Interface=BNC, RF Connector Style=Jack, Connector System=Cable-to-Board, Sealable=No, Connector & Contact Terminates To=Printed Circuit Board, Port Configuration=Single Port, Number of Positions=1, PCB Mount Orientation=Vertical, Number of Coaxial Contacts=1, Impedance=50 Ω, Body Insulation=Without, Body Material=Zinc, Body Finish=Plated, Body Plating Material=Nickel, RF Connector Center Contact Plating Material=Gold, RF Connector Center Contact Material=Phosphor Bronze, Termination Method to Printed Circuit Board=Through Hole - Solder, PCB Mount Retention Type=Hold-Down Post, RF Connector Coupling Mechanism=Bayonet, Connector Mounting Type=Board Mount, Detent=With, Mounting Post Length=3.18 mm, RF Connector Mated Outer Diameter (Approximate)=14.529 mm, Height Above PC Board=16.7 mm, PCB Tail Length=3.18 mm, Operating Temperature Range=-55 – 85 °C, Operating Frequency=4 GHz, Packaging Method=Single Pack, Grade=Commercial, Dielectric Material=TPX

Datasheet
