7TCA296000R2169 PAFS16/BL/10M, Adaptaflex Flexible Conduit, 16mm Nominal Diameter, Polyamide 6, Black, Кабелепровод

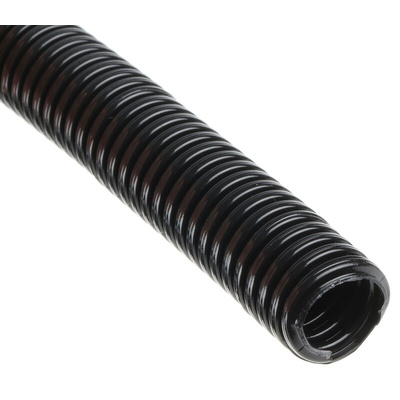

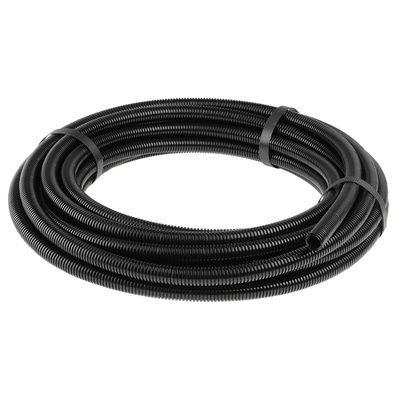

Adaptaflex Plastic Flexible Conduit, 10m Length, 15.8mm OD - PAFS Series - 7TCA296000R2169 PAFS16/BL/10M

Protect your wires and cables using this conduit from Adaptaflex. The polyamide construction is strong and resistant to chemicals and oils, making this unit suitable for light industrial and automotive applications. As it's UV resistant and won't degrade in sunlight, it's suitable for both outdoor and indoor applications, so it's a versatile choice. The pliable material and ribbed design create flexibility to a minimum bend radius of 35mm. This means the conduit is easy to route around objects and is useful for safeguarding connections that power moving machines such as robotic arms and automatic doors.

Features & Benefits

• Wide operating temperature range of -5°C to +120°C for use in harsh conditions
• Flame-retardant and halogen-free means it's a low fire hazard product for use in public spaces
• Non-metallic for reliable performance in damp environments

Applications

• Robotics
• Light industry
• Commercial buildings
• Automotive manufacturing

Can I use this conduit in wash-down areas?

Yes, this conduit is compatible with Adaptalok ATS® fittings to achieve an IP69K (ingress protection) rating. Once it's attached, it's dust-tight and resistant to high-pressure water jets.

Adaptaflex PA/PI Conduit & Adaptalok®/Adaptaseal®/Adaptalok ATS® Fittings

A range of black flexible conduits and fittings to suit a wide variety of uses which include, use where public safety or where the integrity of electronic equipment are of concern or for robotic, rapid or continuous motion applications demanding high fatigue life and extra flexibility, also suited for low temperature environments.,Conduits are manufactured from modified Polyamide and are flame retardant, halogen free, have a low fire hazard (LFH) and offer resistance against chemicals and oils i.e. MEK, petrol, diesel, mineral oils, etc.,Fitting systems compatible with these Adaptaflex conduits are Adaptalok® for an IP66 rating, Adaptaseal® for an IP67 rating and Adaptalok ATS® for an IP68/69K rating.

Non-metallic flexible Systems

Chemical Resistance Chart

1865038_Datasheet_en
