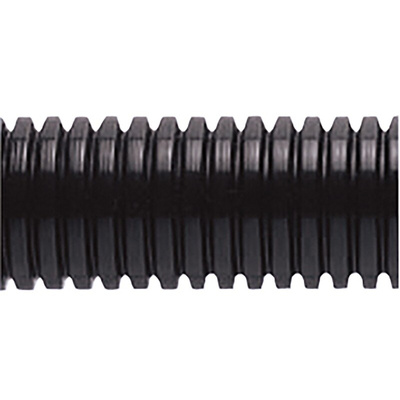

7TCA296000R2246 PAFS34/BL/10M, Adaptaflex Flexible Conduit, 32mm Nominal Diameter, Plastic, Black, Кабелепровод

Adaptaflex Conduit, 10m Length, Polyamide/Nylon 6 Housing - PAFS Series - 7TCA296000R2246 PAFS34/BL/10M

Use this sturdy conduit from Adaptaflex to protect your wiring in a demanding industrial environment. It's made of durable polyamide material that withstands impact and corrosion, so there's no risk of your cables getting bent out of shape or degraded by corrosive substances. As the tubing is resistant to UV, you can use it to protect cables either indoors or outdoors, making it a versatile shielding solution.

Features & Benefits

• Minimum bend radius of 60mm for easy installation around corners
• Broad operating temperature range between -5°C and +120°C for use in harsh conditions
• Conduit length of 10m provides enough material for an extended cable run or several smaller jobs
• Large inside diameter of 28.8mm allows for one or more cables
• Resists MEK, petrol, diesel and mineral oils, making it safe to use in fluid transmission setups

Applications

• Construction industry
• Commercial buildings
• Robotics and automation systems

What's the IP rating of this MCB?

When fitted with one of Adaptaflex's Adaptaseal parts, such as an M32 conduit fitting (186-5218), the conduit and fitting achieve an IP67 rating. This indicates that it's fully protected against dust and withstands high-pressure water jets, so it's suitable for use in dirty and dusty environments that need frequent cleaning.

Adaptaflex PA/PI Conduit & Adaptalok®/Adaptaseal®/Adaptalok ATS® Fittings

A range of black flexible conduits and fittings to suit a wide variety of uses which include, use where public safety or where the integrity of electronic equipment are of concern or for robotic, rapid or continuous motion applications demanding high fatigue life and extra flexibility, also suited for low temperature environments.,Conduits are manufactured from modified Polyamide and are flame retardant, halogen free, have a low fire hazard (LFH) and offer resistance against chemicals and oils i.e. MEK, petrol, diesel, mineral oils, etc.,Fitting systems compatible with these Adaptaflex conduits are Adaptalok® for an IP66 rating, Adaptaseal® for an IP67 rating and Adaptalok ATS® for an IP68/69K rating.

Non-metallic flexible Systems

Chemical Resistance Chart

1865044_Catalogue_en

Datasheet - PAFS34/BL/10M
